template: template-title

# Performance testing
## Andrey Akinshin, JetBrains
### Dotnetos, Warsaw, Poland, 10.10.2019

---
template: template-section

## Part 1
## Introduction

---
layout: true
template: template-page

<div>.footer-note[(1) Introduction]</div>

---
class: normal

### How do we typically solve performance problems?

.center[![:scale 90%](img/dino.gif)]
.bottom-hint-huge[https://www.youtube.com/watch?v=z6_ZbG7Zu0c]

---
class: normal

### What do we want?

1. Prevent performance degradations

2. Detect not-prevented degradations

3. Detect other kinds of performance anomalies

4. Reduce Type I (false positive) error rate<br /> *(Detecting fake problem)*

5. Reduce Type II (false negative) error rate<br /> *(Missing real problem)*

6. Automate everything

---
class: normal

### Agenda

* Performance Summary Reports

* Performance Comparing Reports

* Performance Anomalies

* Performance Alarms & Asserts

---
template: template-section

## Part 2
## Performance Summary Reports

---
layout: true
template: template-page

<div>.footer-note[(2) Performance Summary Reports]</div>

---
class: normal

### BenchmarkDotNet

.up[]
.center[![:scale 100%](img/bdn.png)]

---
class: normal

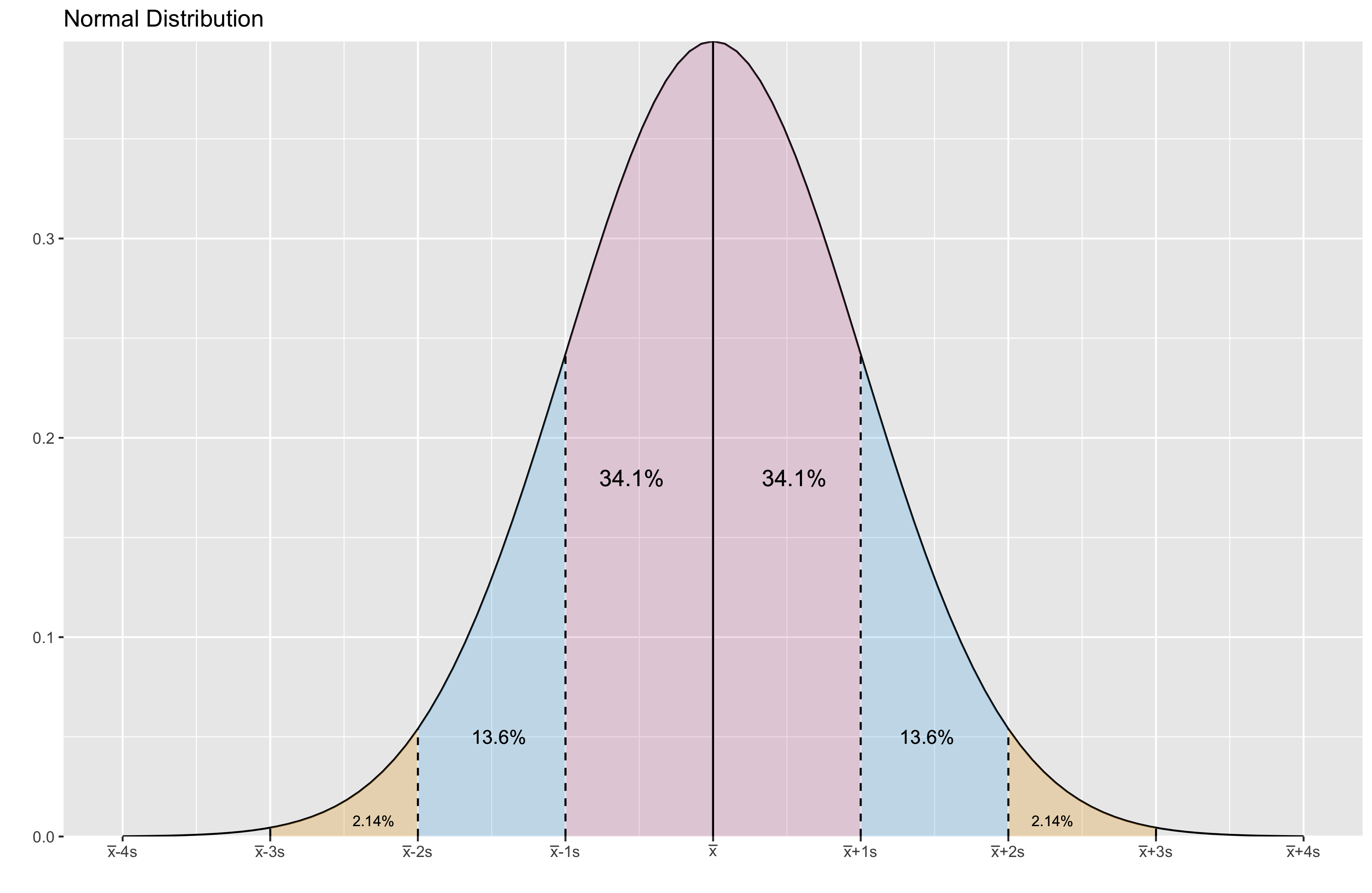

### Normal distribution

.up[]
.center[![:scale 65%](img/normal.png)]

.up1[]
<div style="font-size: 70%">
.c[
> *Normality is a myth; there never was, and never will be, a normal distribution.*
> "Testing for normality", R.C. Geary, 1947
]
</div>

.bottom-hint-huge[https://aakinshin.net/posts/normality/]

---
class: normal

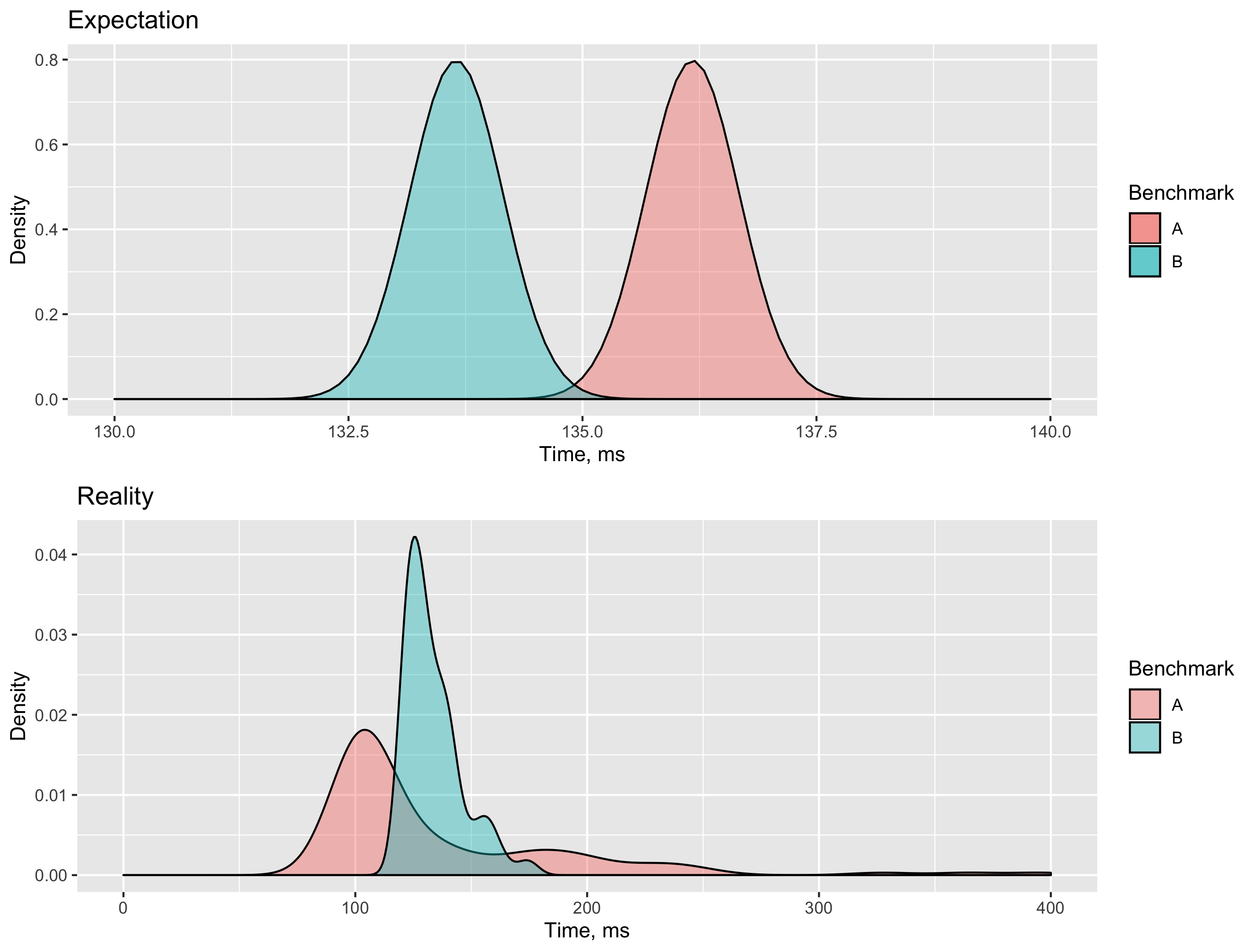

### An experiment

.up[]
.size-50[
.center[
```md
| Method |     Mean |    Error |   StdDev |   Median |
|------- |---------:|---------:|---------:|---------:|
|      A | `136.2 ms` | 19.30 ms | 56.92 ms | 107.0 ms |
|      B | `133.7 ms` |  4.14 ms | 12.20 ms | 130.2 ms |
```
]
]

.center[![:scale 60%](img/misleading.png)]

---
class: normal

### What kind of metrics should we report?

.up3[]
.center[![:scale 80%](img/cloud.png)]

---
class: normal

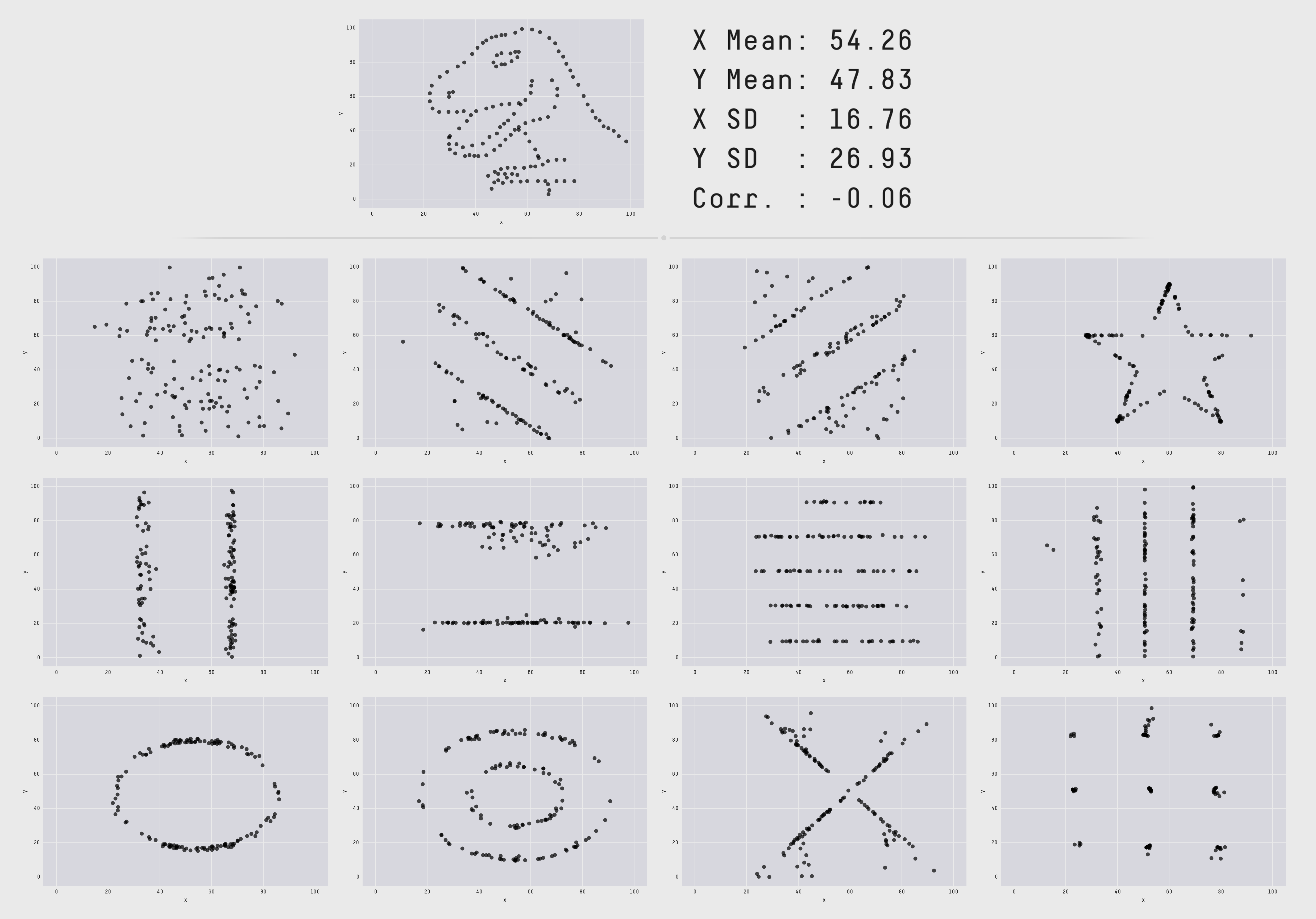

### Mean and StdDev may be misleading

.up[]
.center[![:scale 80%](img/samestats1.png)]
.bottom-hint[Justin Matejka, George Fitzmaurice (2017), "Same Stats, Different Graphs: Generating Datasets with Varied Appearance and Identical Statistics through Simulated Annealing", CHI 2017 Conference proceedings: ACM SIGCHI Conference on Human Factors in Computing Systems]

---
class: normal

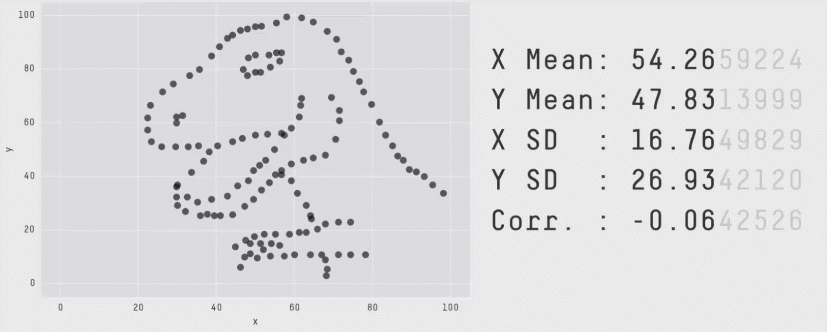

### Mean and StdDev may be misleading

.center[![:scale 100%](img/samestats2.gif)]
.bottom-hint[Justin Matejka, George Fitzmaurice (2017), "Same Stats, Different Graphs: Generating Datasets with Varied Appearance and Identical Statistics through Simulated Annealing", CHI 2017 Conference proceedings: ACM SIGCHI Conference on Human Factors in Computing Systems]

---
class: normal

### Ranges [User-friendly approach]

.size-150[
```md
| Method |        Range |
|------- |-------------:|
|      A | `100ms..200ms` |
|      B | `120ms..150ms` |
```
]

---
class: normal

### Ranges and Notes [User-friendly approach]

.size-150[
```md
| Method |        Range |         Notes |
|------- |-------------:|--------------:|
|      A | 100ms..200ms | `High outliers` |
|      B | 120ms..150ms |               |
```
]

---
class: normal

### Ranges and Notes [User-friendly approach]

.size-150[
```md
| Method |        Range |           Notes |
|------- |-------------:|----------------:|
|      A | 100ms..200ms | High outliers`^1` |
|      B | 120ms..150ms |                 |

`^1 High outliers: 327ms, 364ms, 396ms`
```
]

---
template: template-section

## Part 3
## Performance Comparing Reports

---
layout: true
template: template-page

<div>.footer-note[(3) Performance Comparing Reports]</div>

---
class: normal

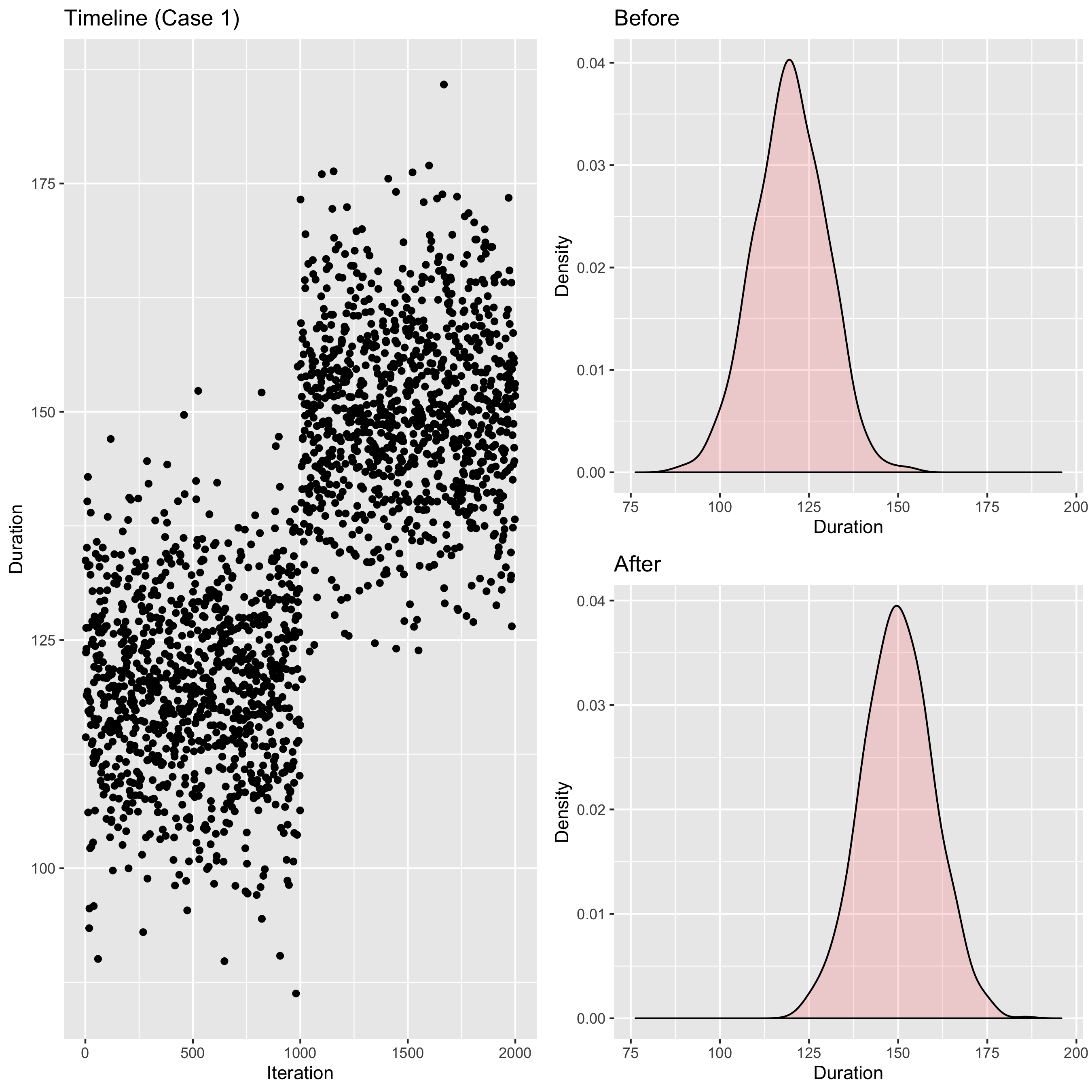

### Distribution comparing: Case 1

.up[]
.center[![:scale 55%](img/compare1.png)]

---
class: normal

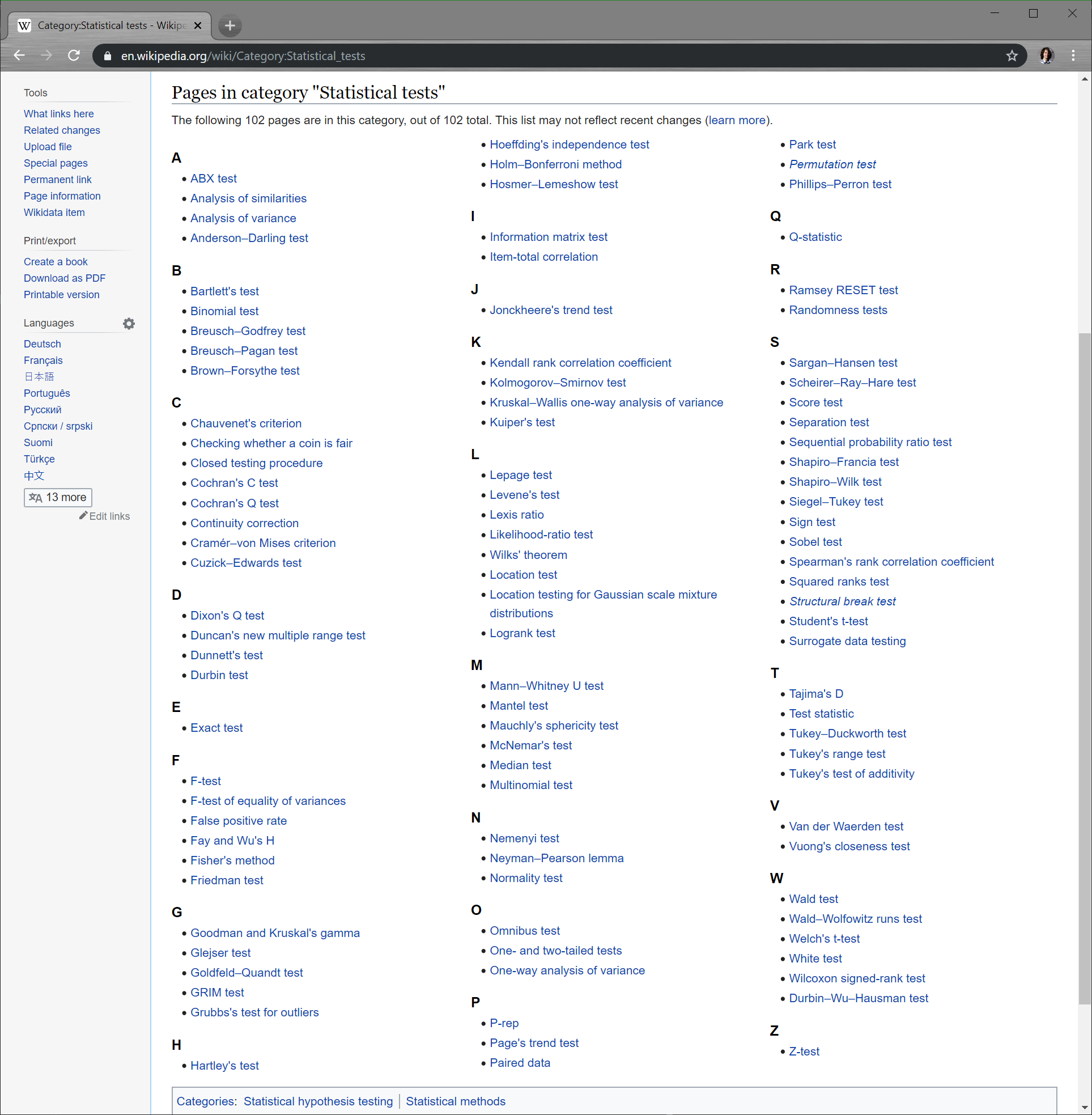

### Overview [Statistical tests]

.up[]
.center[![:scale 55%](img/statistics-tests-overview.png)]

---
class: normal

### Confusing naming [Statistical tests]

* We have:

* Null hypothesis (we don't have a degradation)

* Alternative hypothesis (we have a degradation)

* The result: p-value

* p-value < α: we reject the null hypothesis

* p-value > α: we fail to reject the null hypothesis

---
class: normal

### Limitations [Statistical tests]

.up[]
```cs
// Before changes (N = 10000; Range = [1.01min..1.02min])
Iteration 0000:  1.011 min
Iteration 0001:  1.014 min
Iteration 0002:  1.021 min
Iteration 0003:  1.017 min
...
Iteration 9999:  1.012 min
```
.up1[]
```cs
// After changes (N =      1; Range = [60.127min..60.127min])
Iteration 0000: 60.127 min
```

```md
👨‍💼Team Lead            : Do we have a performance degradation?
```
--
.up1[]
```md
👩‍💻Performance Engineer : Yes, probably we have a degradation here.
```
--
.up1[]
```cs
👻Statistical Test     : throw new DivideByZeroException("N should be >= 1")
```

---
class: normal

### Incorrect interpretation [Statistical tests]

.up[]
```cs
// Before changes (N = 10000; Range = [1.01min..1.02min])
Iteration 0000:  1.011 min
Iteration 0001:  1.014 min
Iteration 0002:  1.021 min
Iteration 0003:  1.017 min
...
Iteration 9999:  1.012 min
```
.up1[]
```cs
// After changes (N =      3; Range = [60.1min..60.3min])
Iteration 0000: 60.127 min
Iteration 0001: 60.279 min
Iteration 0002: 60.241 min
```

```md
👨‍💼Team Lead            : Do we have a performance degradation?
```
--
.up1[]
```md
👩‍💻Performance Engineer : Yes, most likely we have a degradation here.
```
--
.up1[]
```md
💩Statistical Test     : We fail to reject the null hypothesis.
```

---
class: normal

### Wrong question [Statistical tests]

.size-80[
.c[
.cl[
```cs
// Before Changes
public void Foo(object x)
{

// Some code
}
```
]
.cr[
```cs
// After Changes
public void Foo(object x)
{
  `if (x == null)`
    `throw new NullReferenceException("x");`
  // Some code
}
```
]
]
]

```md
👨‍💼Team Lead            : Do we have a performance degradation?
```
--
.up1[]
```md
👩‍💻Performance Engineer : Yes! Because we added new code.
```
--
.up1[]
```md
💩Statistical Test     : We fail to reject the null hypothesis.
```

---
class: normal

### Right question [Statistical tests]

.size-80[
.c[
.cl[
```cs
// Before Changes
public void Foo(object x)
{

// Some code
}
```
]
.cr[
```cs
// After Changes
public void Foo(object x)
{
  `if (x == null)`
    `throw new NullReferenceException("x");`
  // Some code
}
```
]
]
]

```md
👨‍💼Team Lead            : How big is the degradation that we have?
```
--
.up1[]
```md
👩‍💻Performance Engineer : Very small, we can ignore it.
```
--
.up1[]
```cs
👻Statistical Test     : throw new InvalidOperationException(":(")
```

---
class: normal

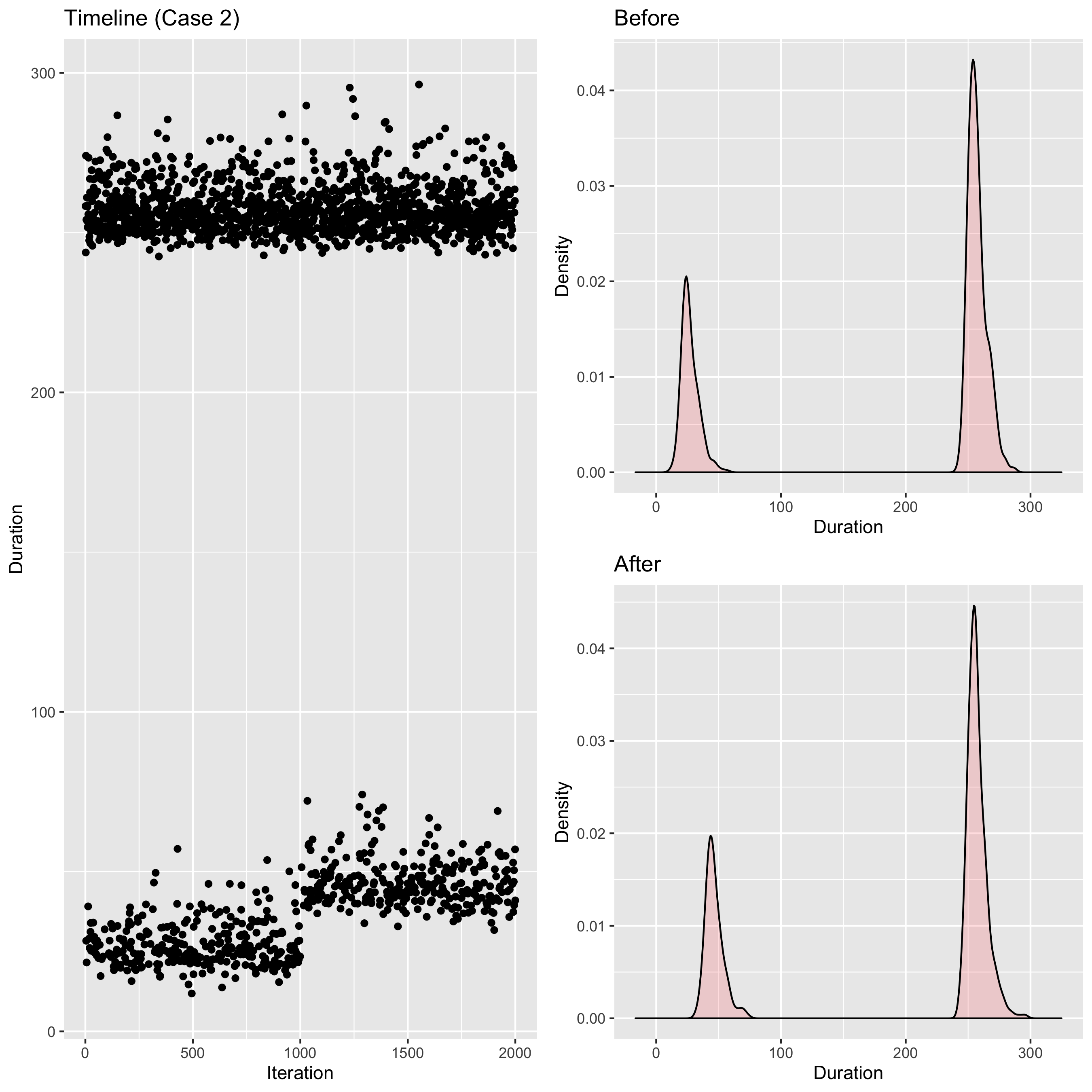

### Distribution comparing: Case 2

.up[]
.center[![:scale 55%](img/compare2.png)]

---
class: normal

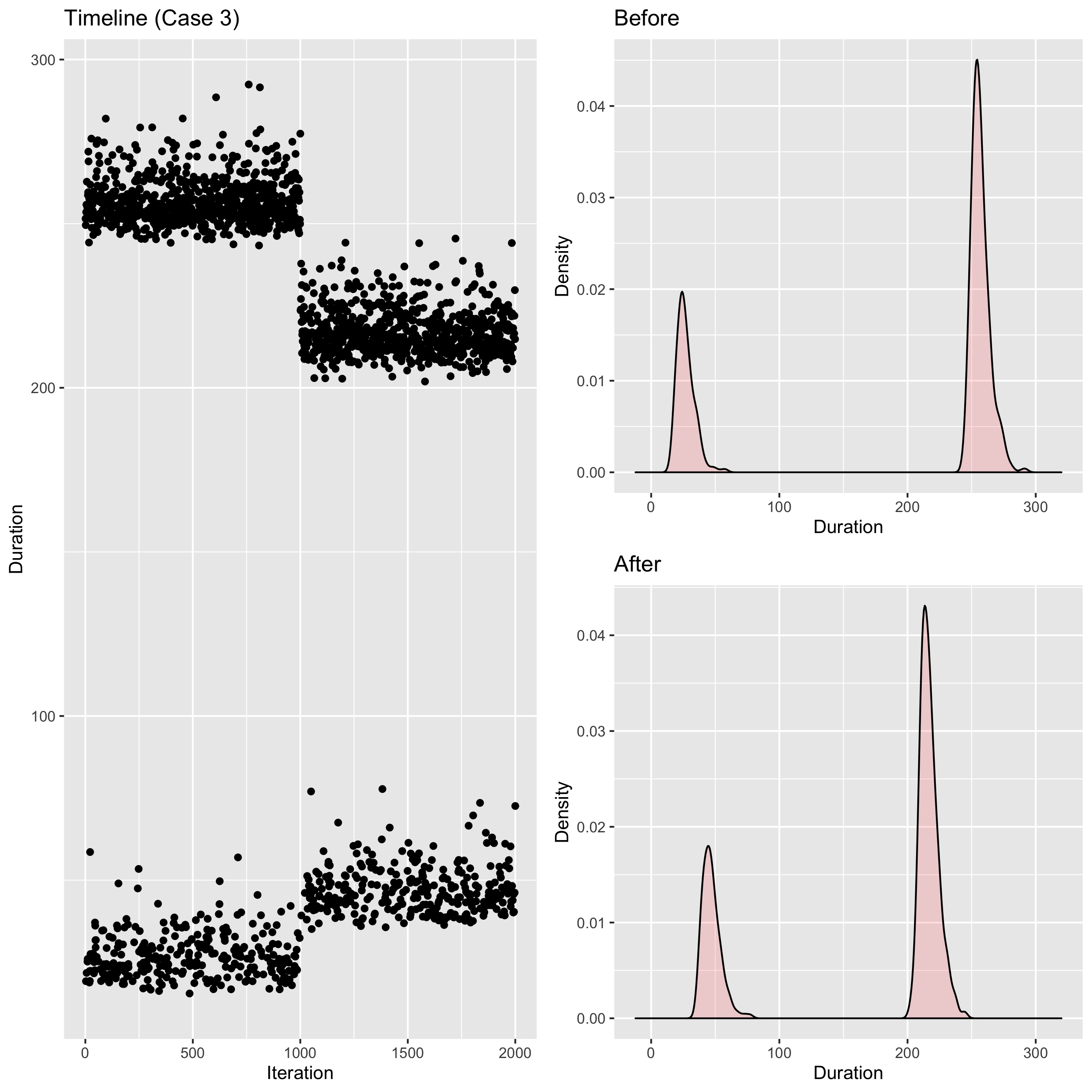

### Distribution comparing: Case 3

.up[]
.center[![:scale 55%](img/compare3.png)]

---
class: normal

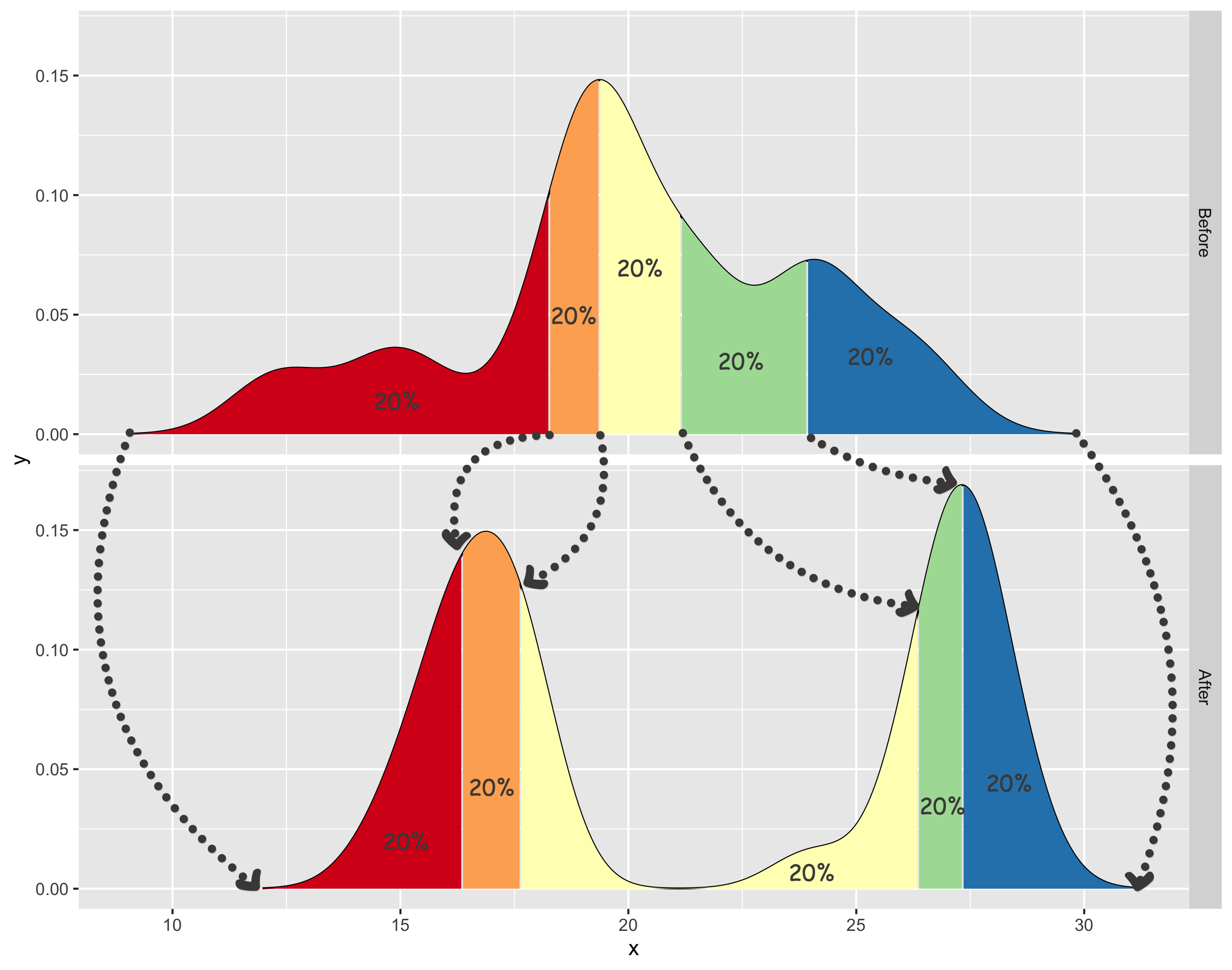

### Shift function

.up[]
.center[![:scale 70%](img/shift-build.png)]

---
class: normal

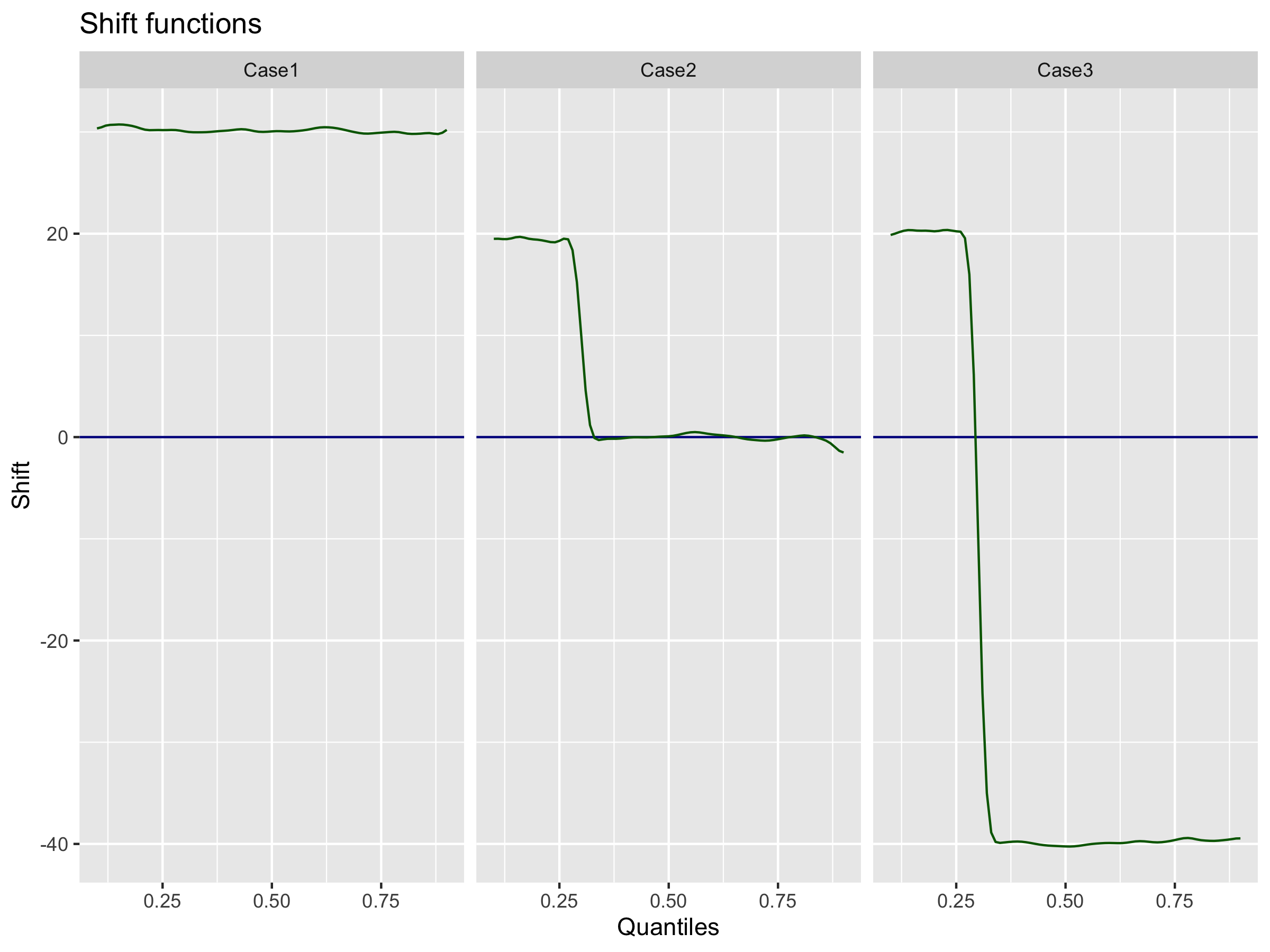

### Shift function

.up[]
.center[![:scale 70%](img/shift.png)]

---
class: normal

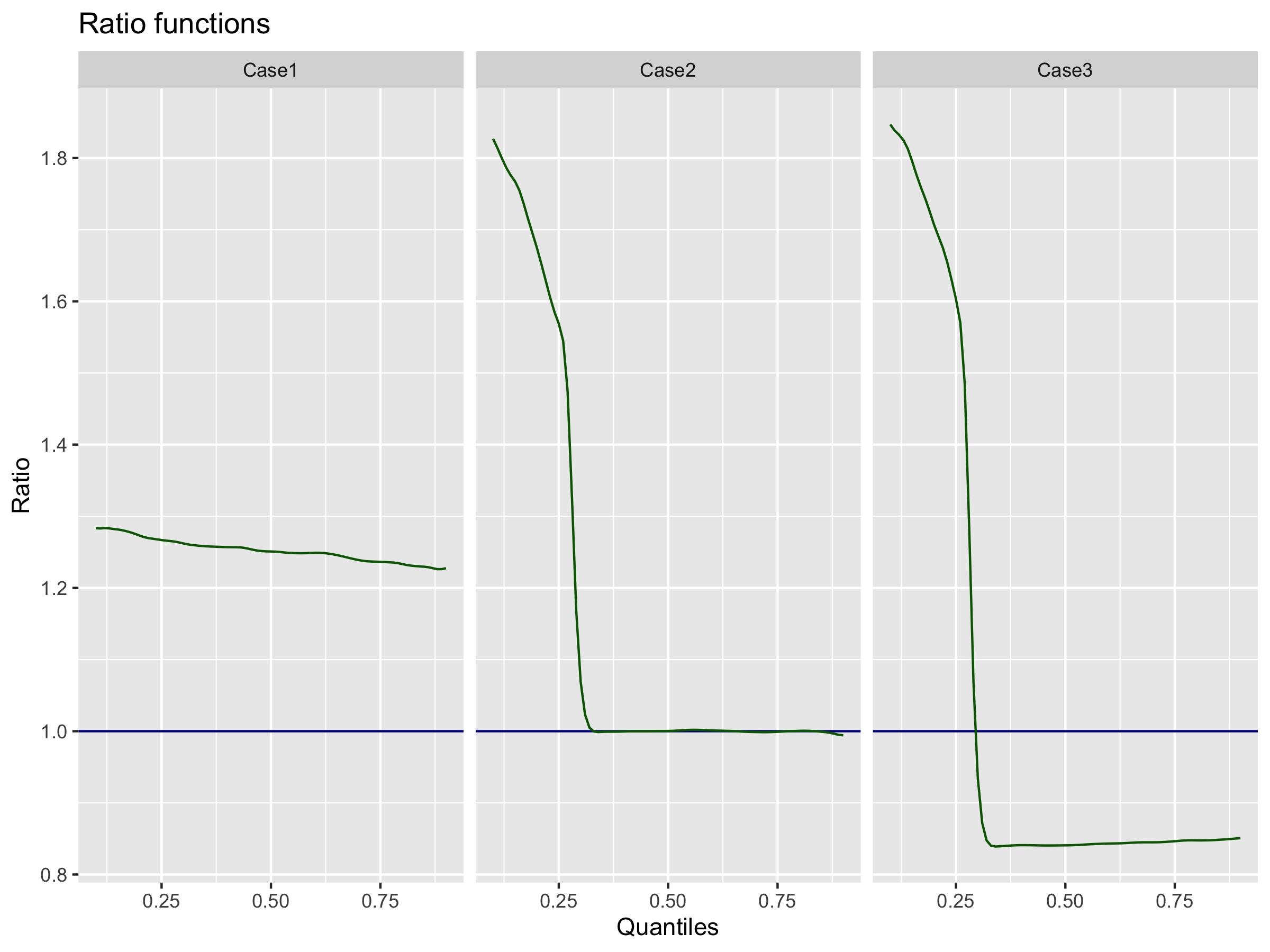

### Ratio function

.up[]
.center[![:scale 70%](img/ratio.png)]

---
class: normal

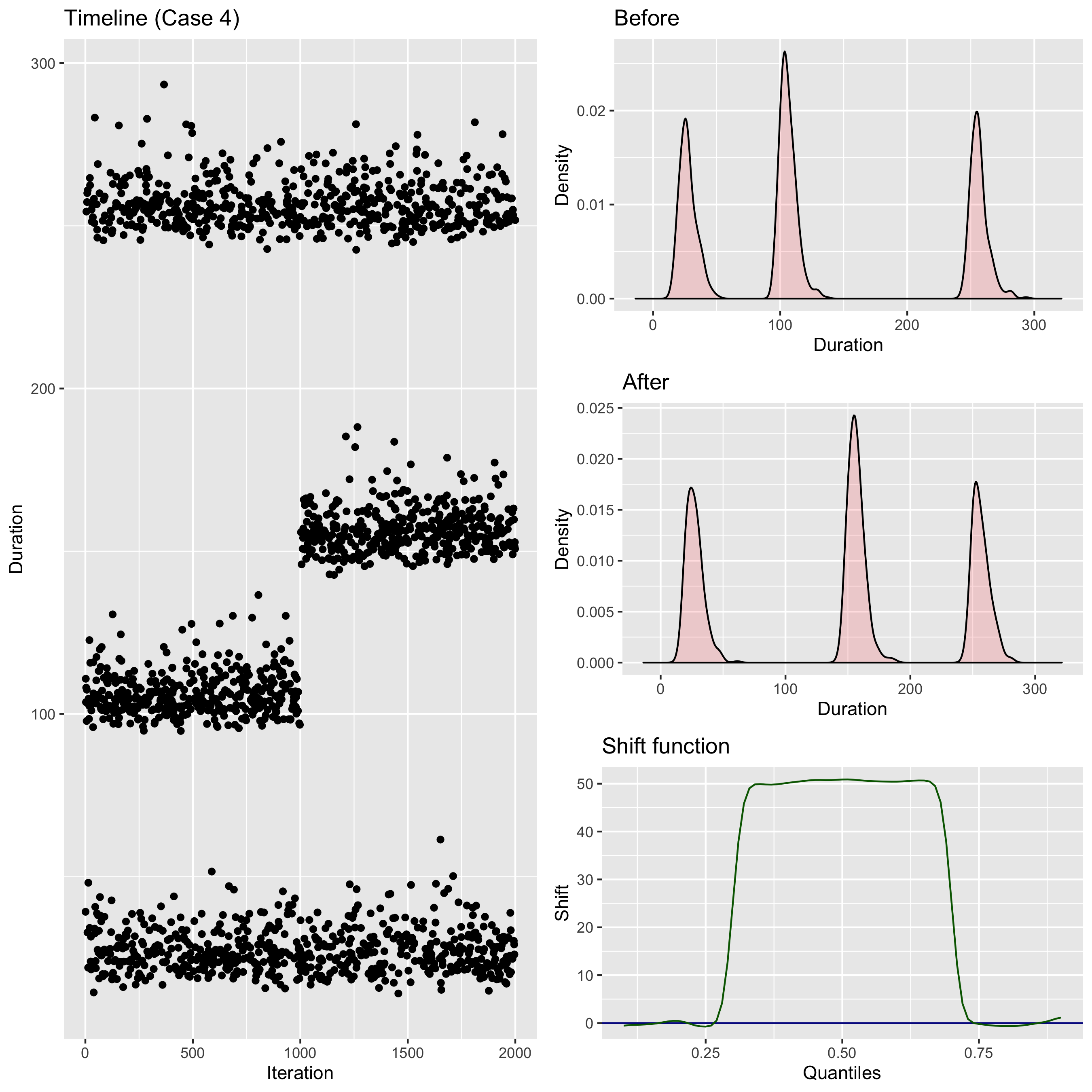

### Distribution Comparing: Case 4

.up[]
.center[![:scale 55%](img/compare4.png)]

---
class: normal

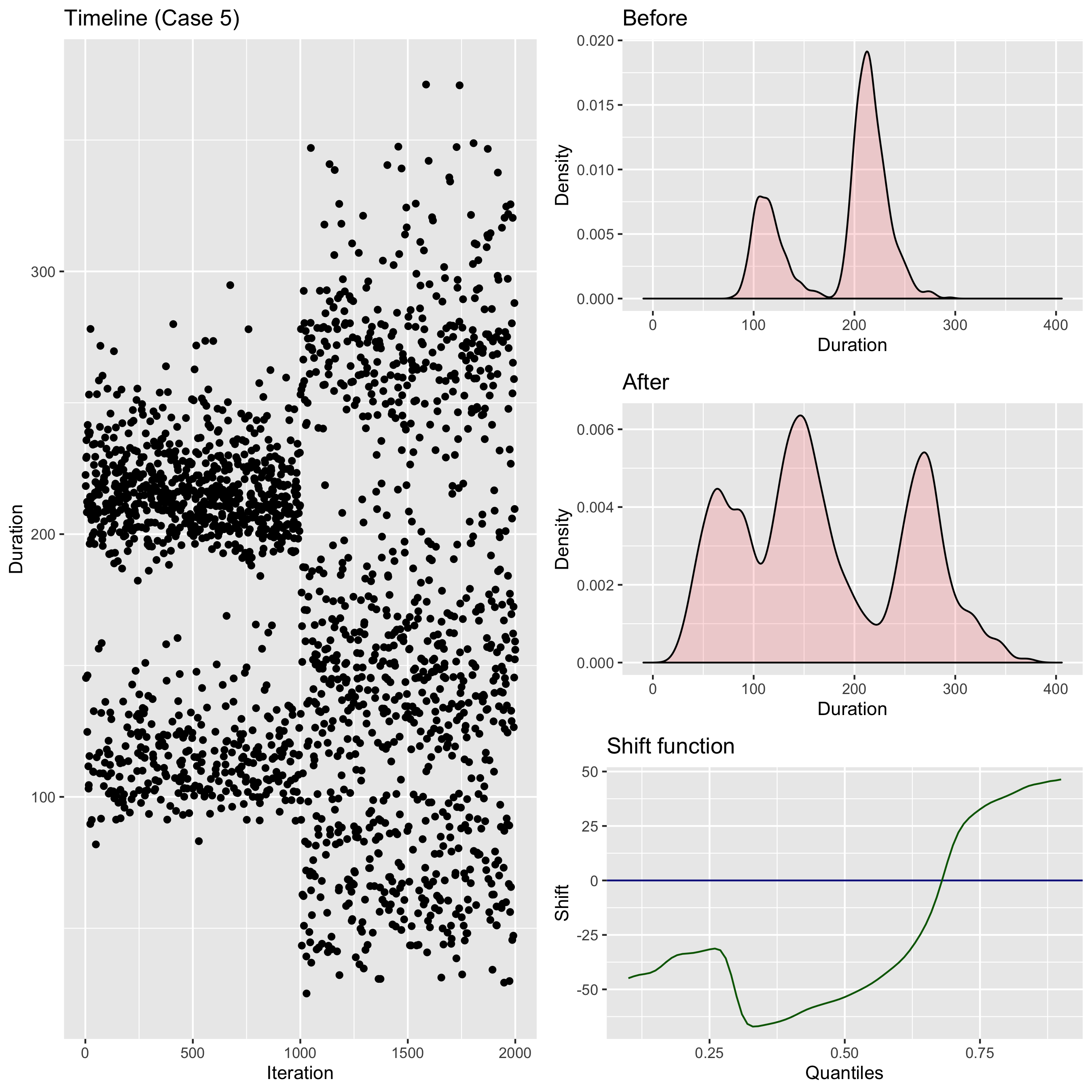

### Distribution Comparing: Case 5

.up[]
.center[![:scale 55%](img/compare5.png)]

---
class: normal

### Ranges [User-friendly approach]

.size-150[
```md
| Method |    Ratio |
|------- |---------:|
|      A | Baseline |
|      B | 2.0-3.0  |
|      C | 0.5-0.6  |
|      D | 0.3-8.5  |
```
]

```md
👨‍💼Team Lead            : Are you sure that we have a degradation?
```
--
.up1[]
```md
👩‍💻Performance Engineer : Yes, I'm sure, we should investigate it!
```
--
.up1[]
```md
👩‍💻Performance Engineer : No, we need more data to be sure.
```

---
class: normal

### Ranges and Notes [User-friendly approach]

.size-150[
```md
| Method |    Ratio | Is result reliable?      |
|------- |---------:|-------------------------:|
|      A | Baseline |                          |
|      B | 2.0-3.0  | `Most likely`              |
|      C | 0.5-0.6  | `Most likely`              |
|      D | 0.3-8.5  | `Not sure; need more data` |
```
]

---
template: template-section

## Part 4
## Performance Anomalies

---
layout: true
template: template-page

<div>.footer-note[(4) Performance Anomalies]</div>

---
class: normal

### Performance anomalies

* Changes in performance distribution<br />
  (degradation, acceleration, something else)

* Huge duration

* Huge variance

* Huge outliers

* Multimodality

* Clasterization

* ...

---
class: normal

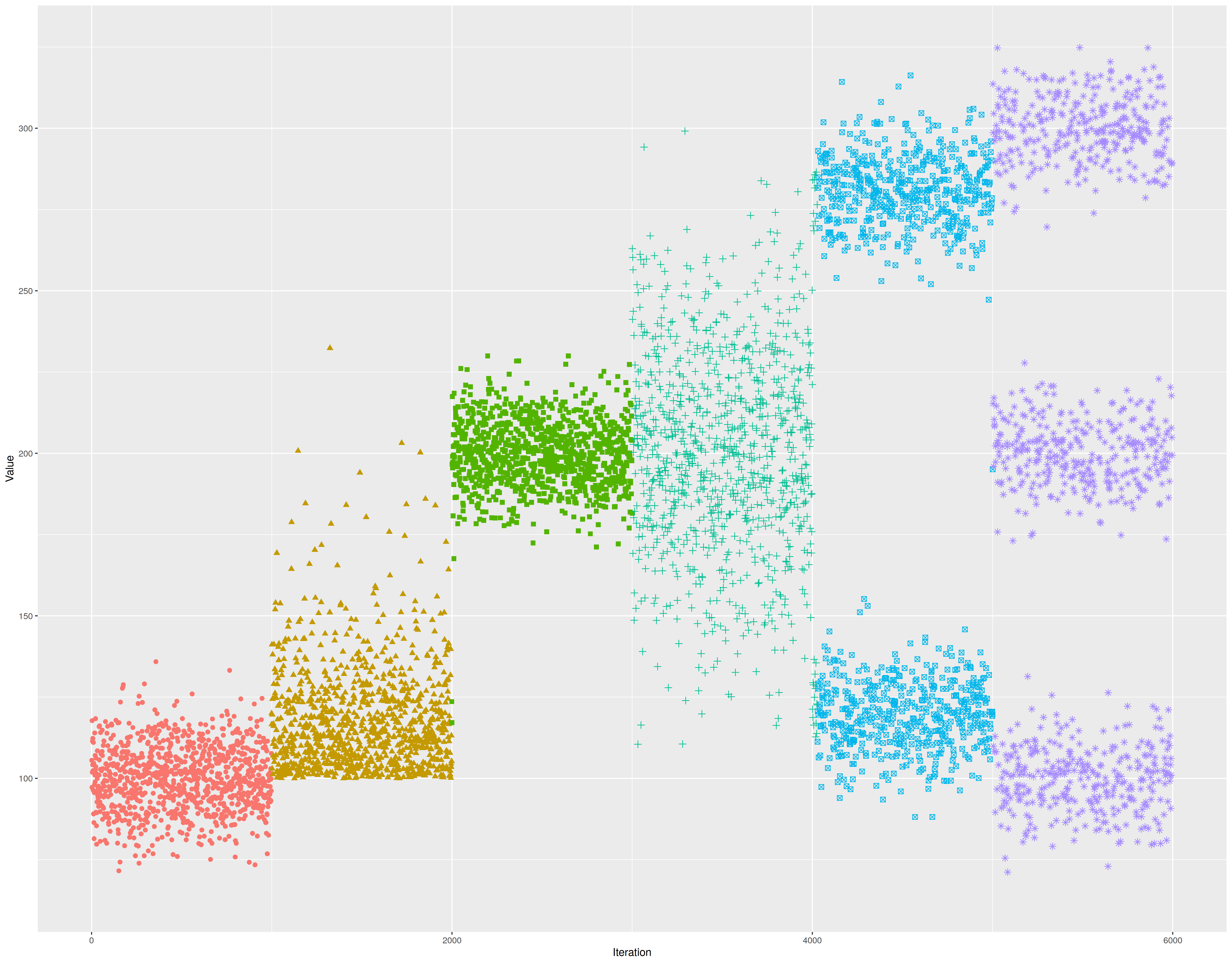

### Changes in performance distribution

.up[]
.center[![:scale 75%](img/changes.png)]

---
class: normal

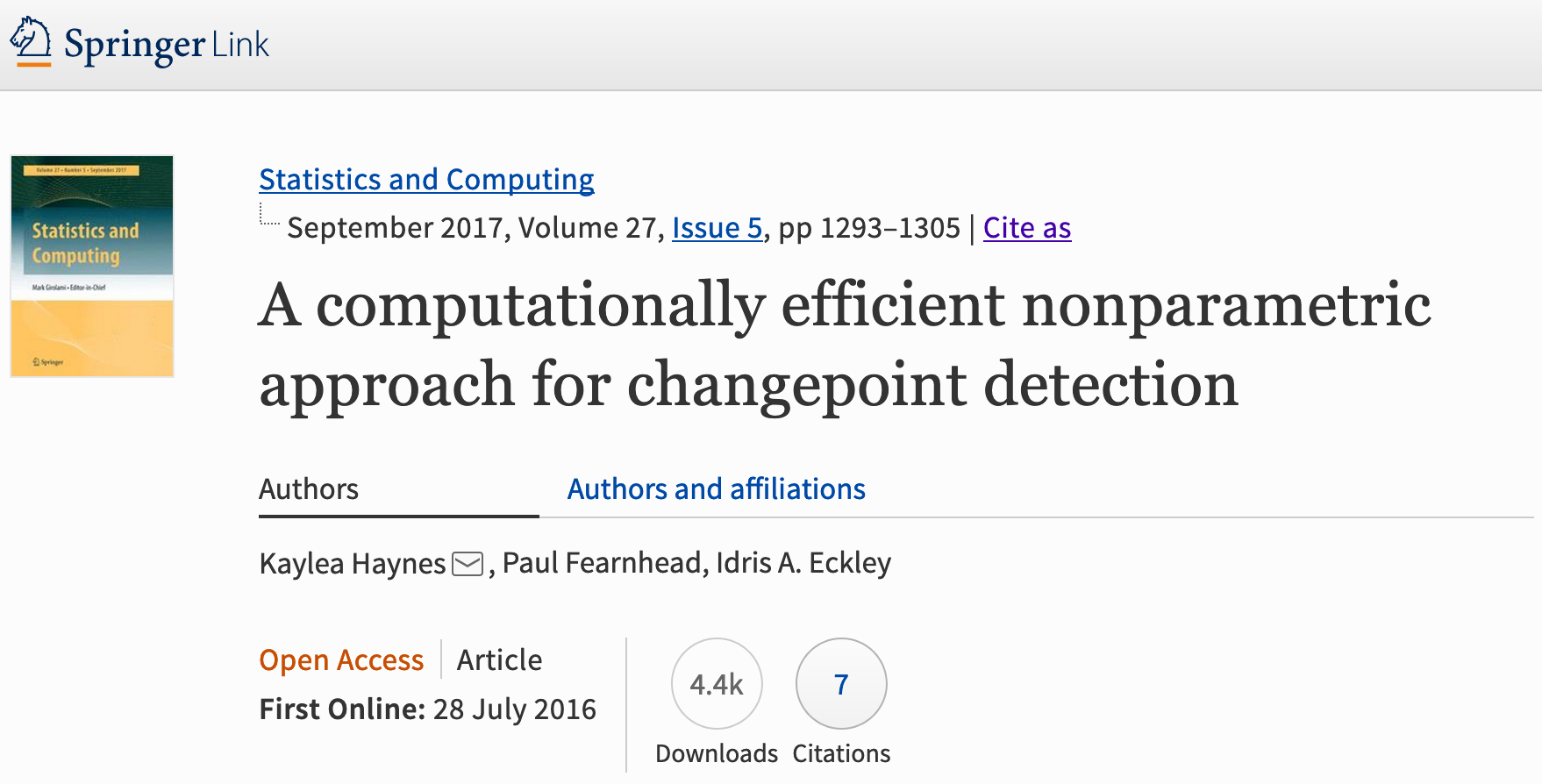

### ED-PELT

.center[![:scale 90%](img/edpelt.png)]

.bottom-hint-huge[https://link.springer.com/article/10.1007/s11222-016-9687-5<br/>https://aakinshin.net/posts/edpelt/]

---
class: normal

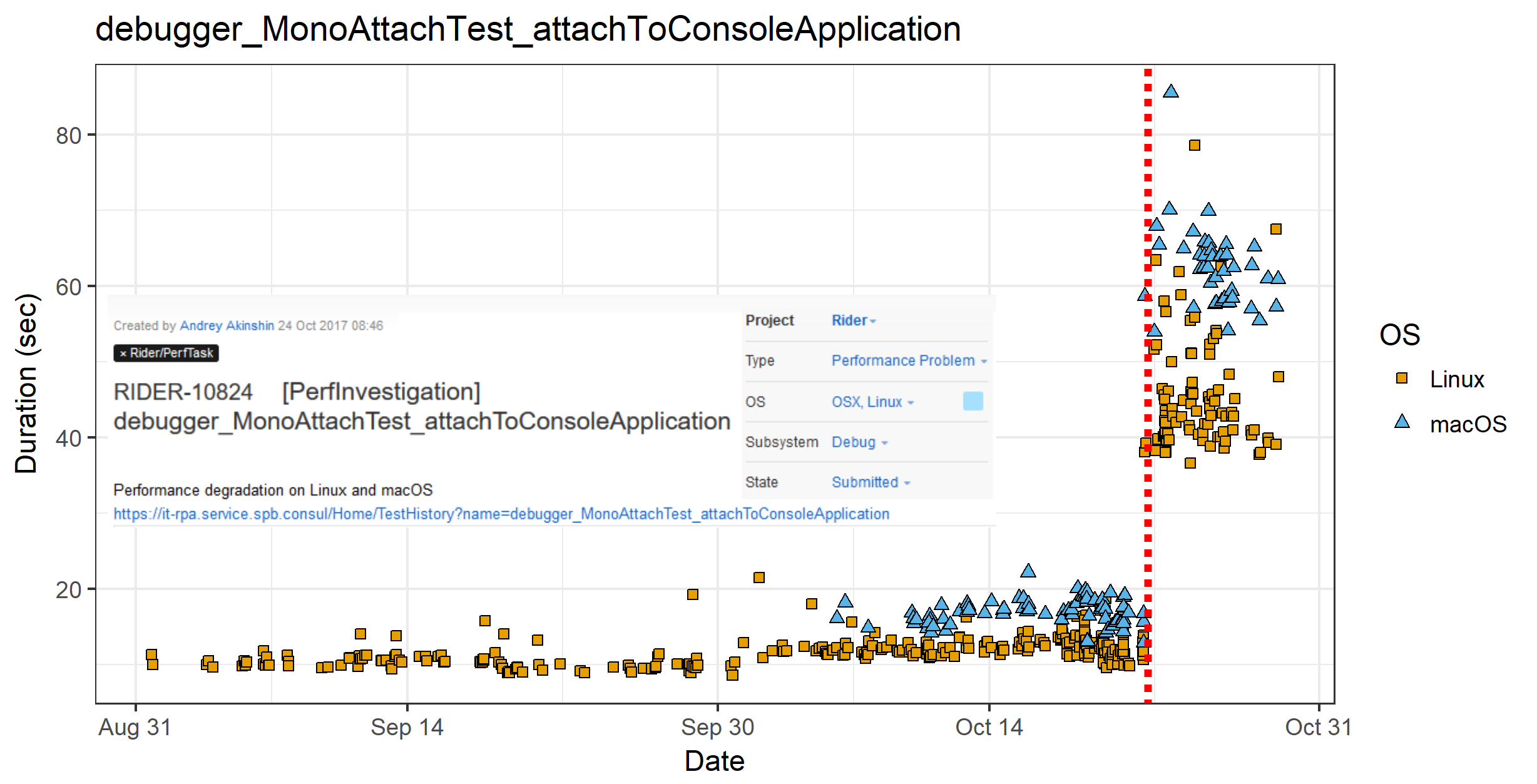

### Huge degradation

.center[![:scale 90%](img/degradation-big.png)]

---
class: normal

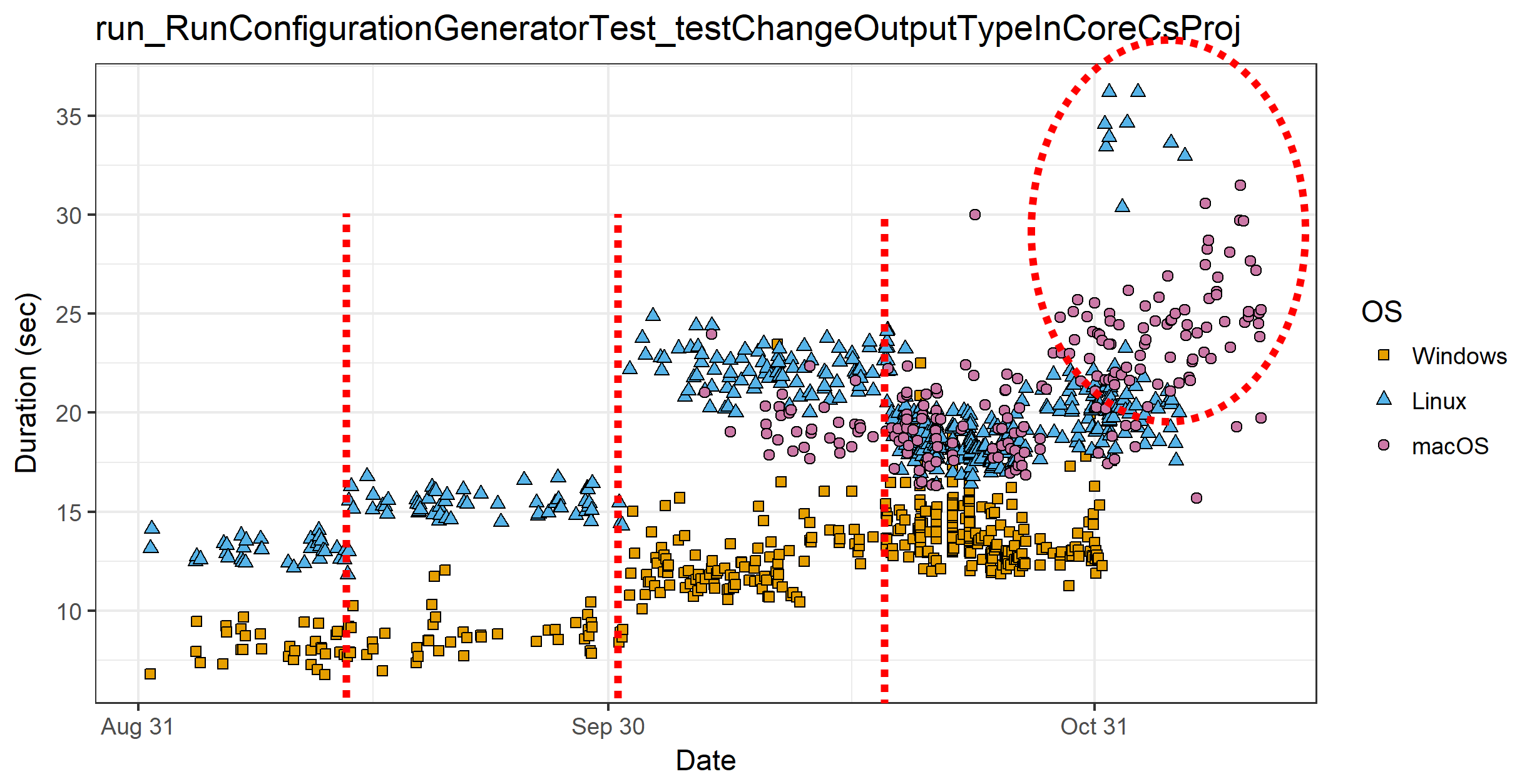

### Many small distributions

.center[![:scale 90%](img/degradation-small.png)]

---
class: normal

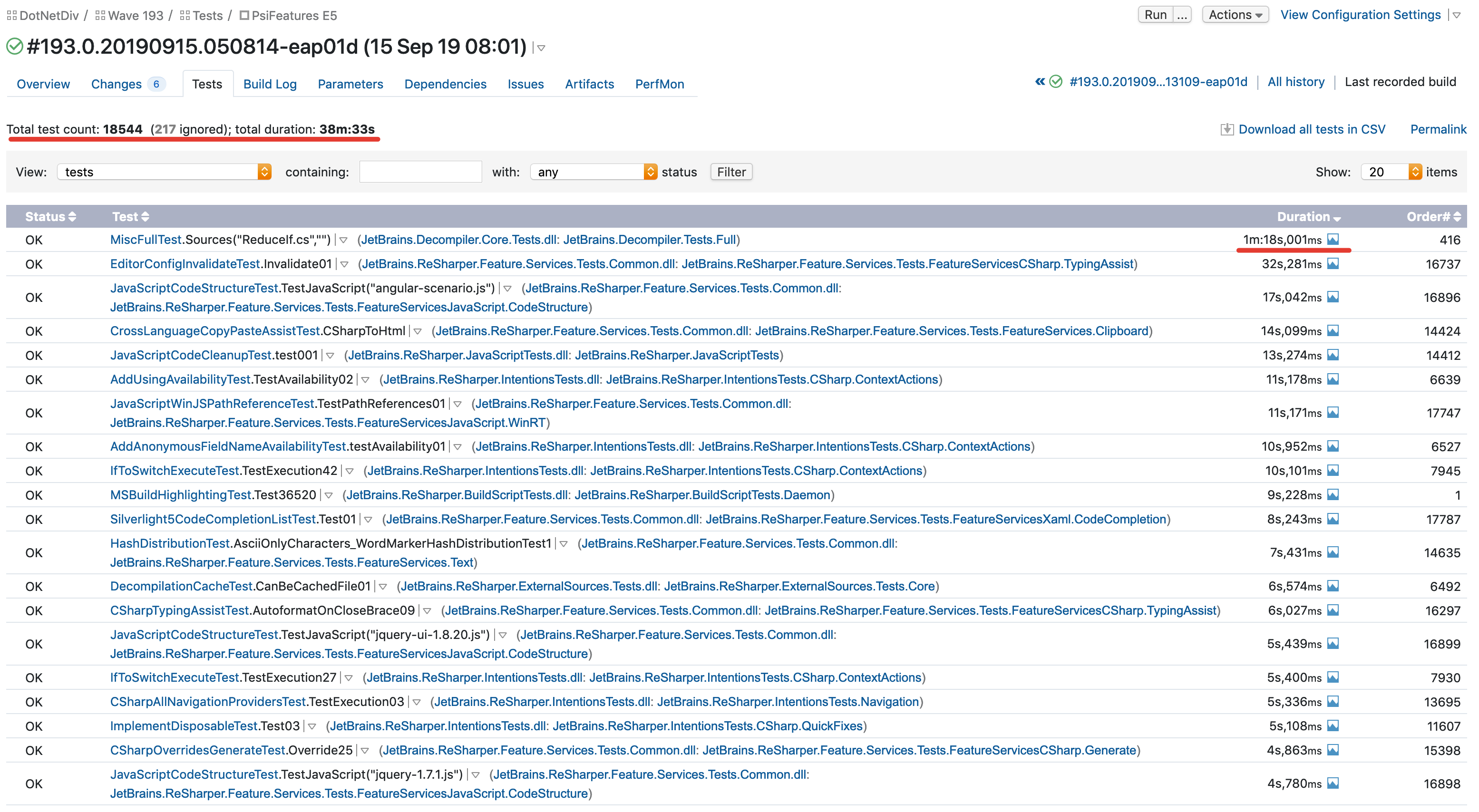

### Huge duration

.center[![:scale 90%](img/teamcity.png)]

---
class: normal

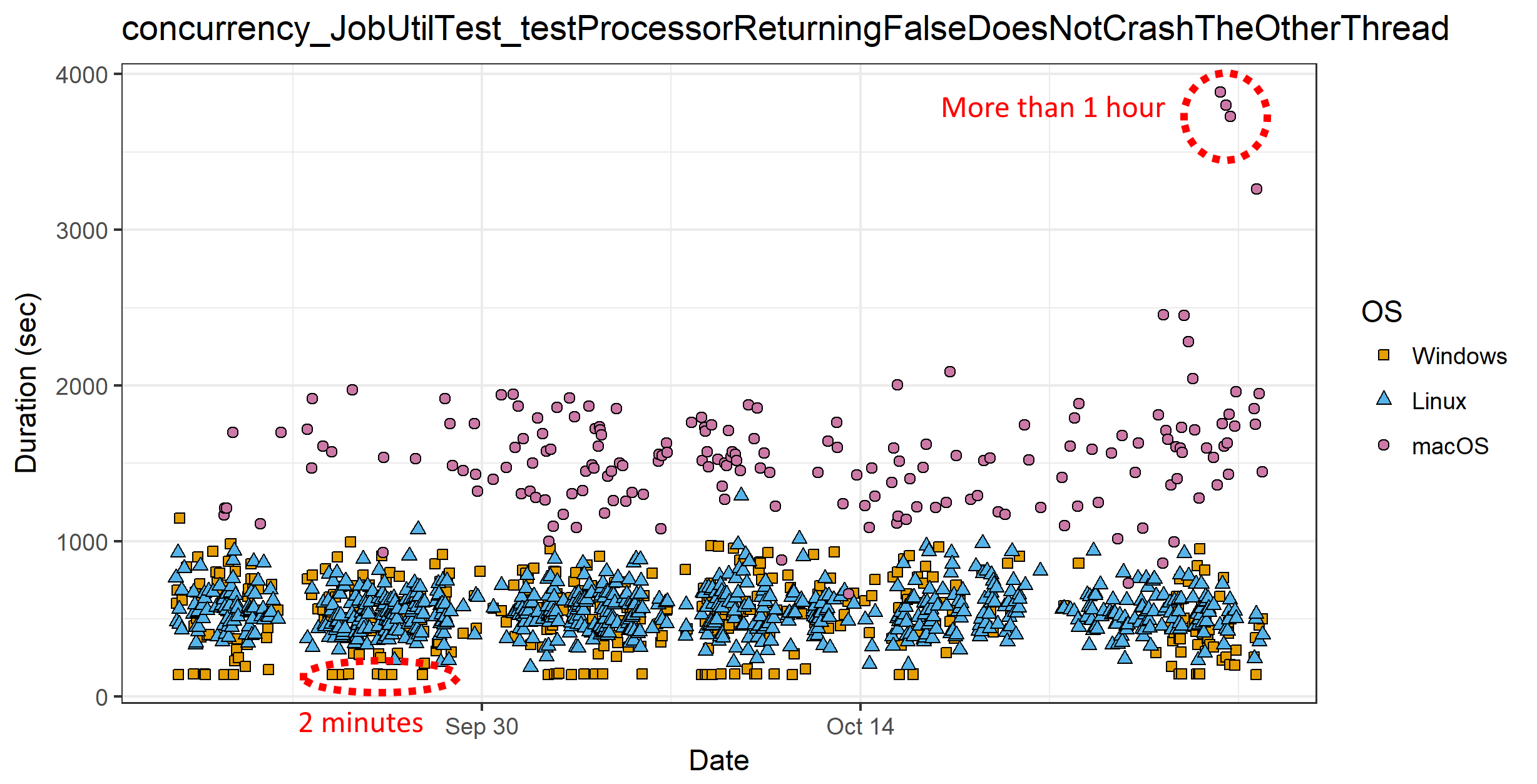

### Huge variance

.center[![:scale 90%](img/analysis-anomalies-variance.png)]

---
class: normal

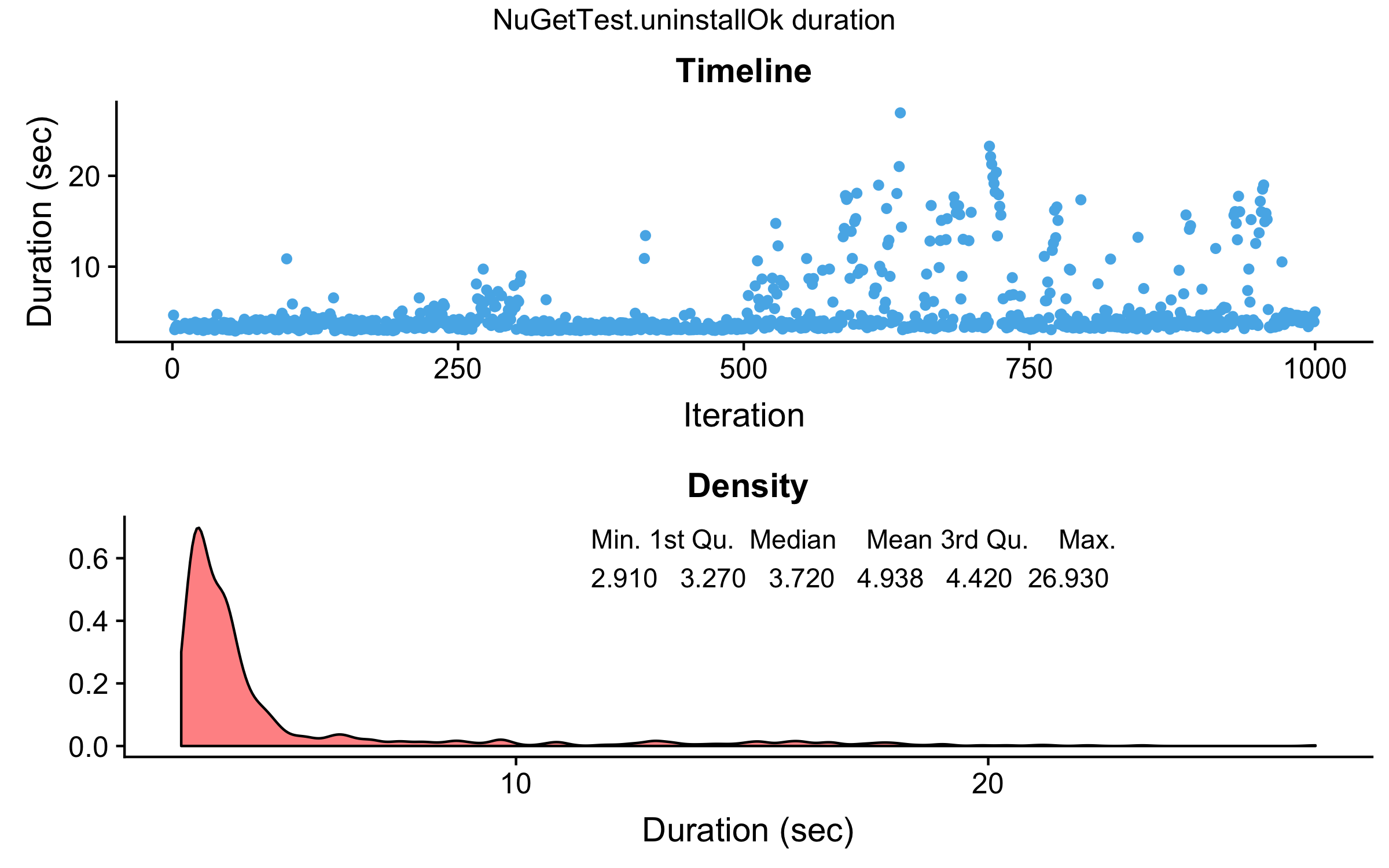

### Huge outliers

.center[![:scale 90%](img/stats-outliers.png)]

---
class: normal

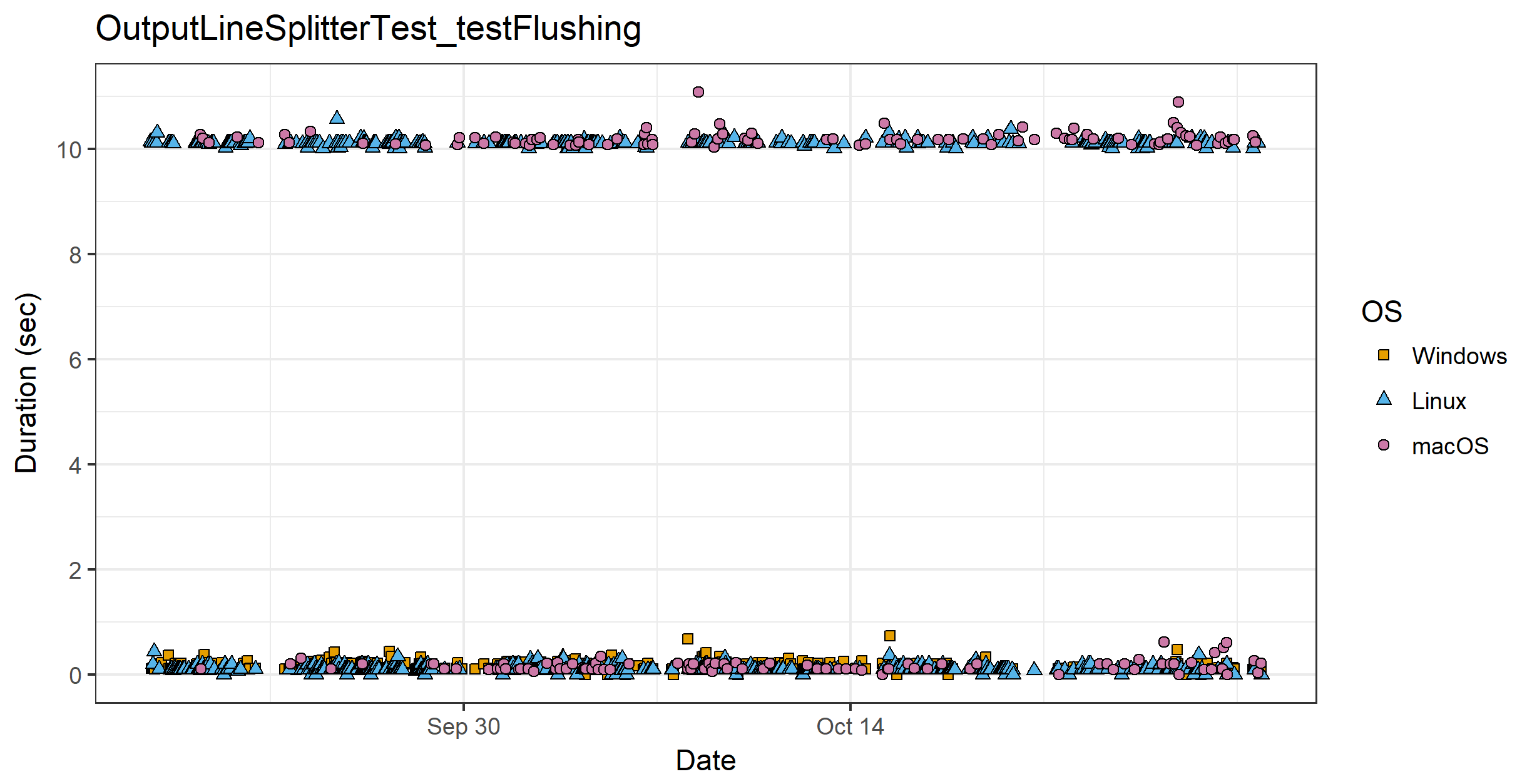

### Multimodality

.center[![:scale 90%](img/analysis-anomalies-bimodal.png)]

---
class: normal

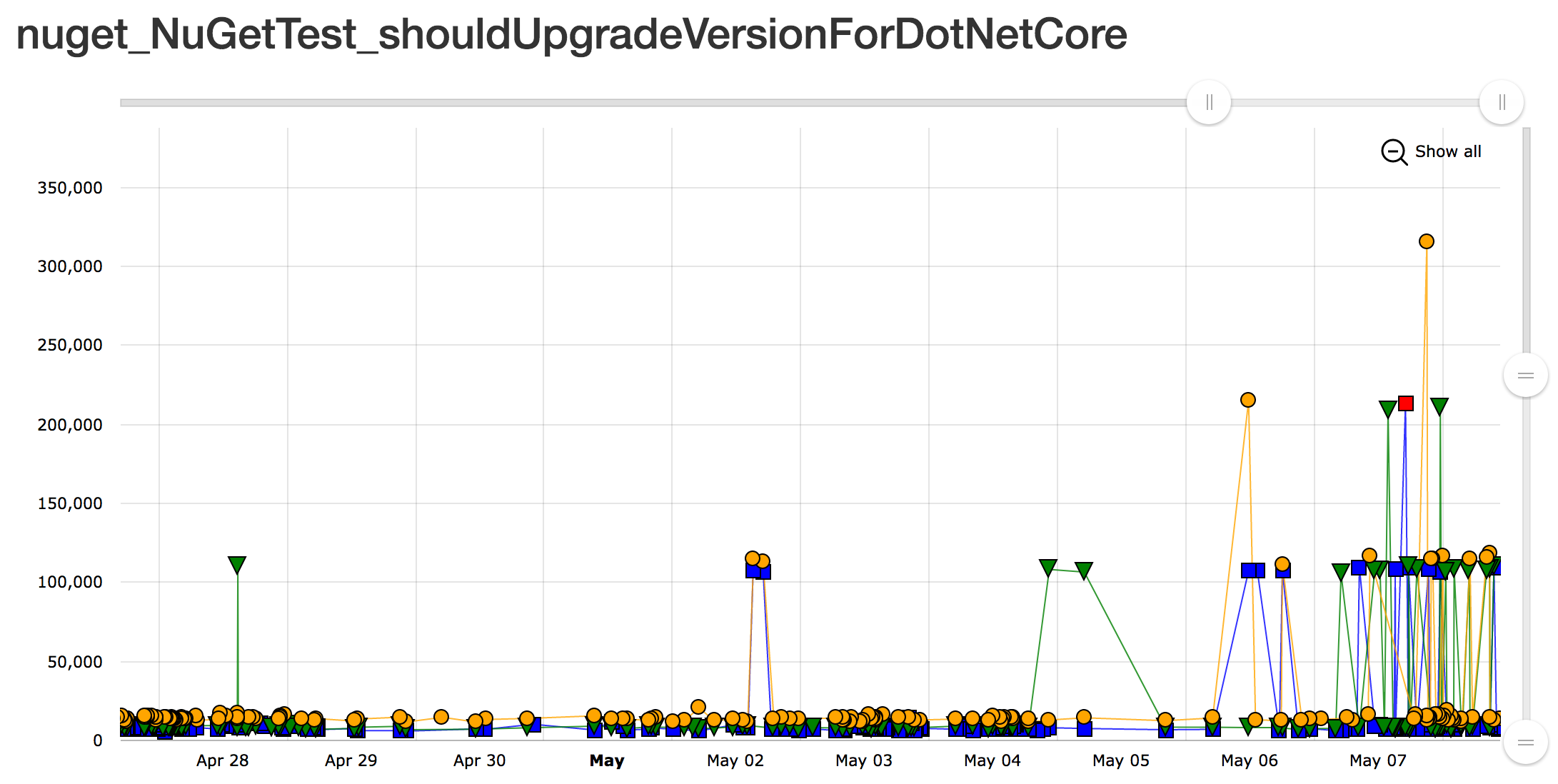

### Multimodality

.center[![:scale 90%](img/nuget-blogpost.png)]

.bottom-hint-huge["A story about slow NuGet package browsing", https://aakinshin.net/posts/nuget-package-browsing/]

---
class: normal

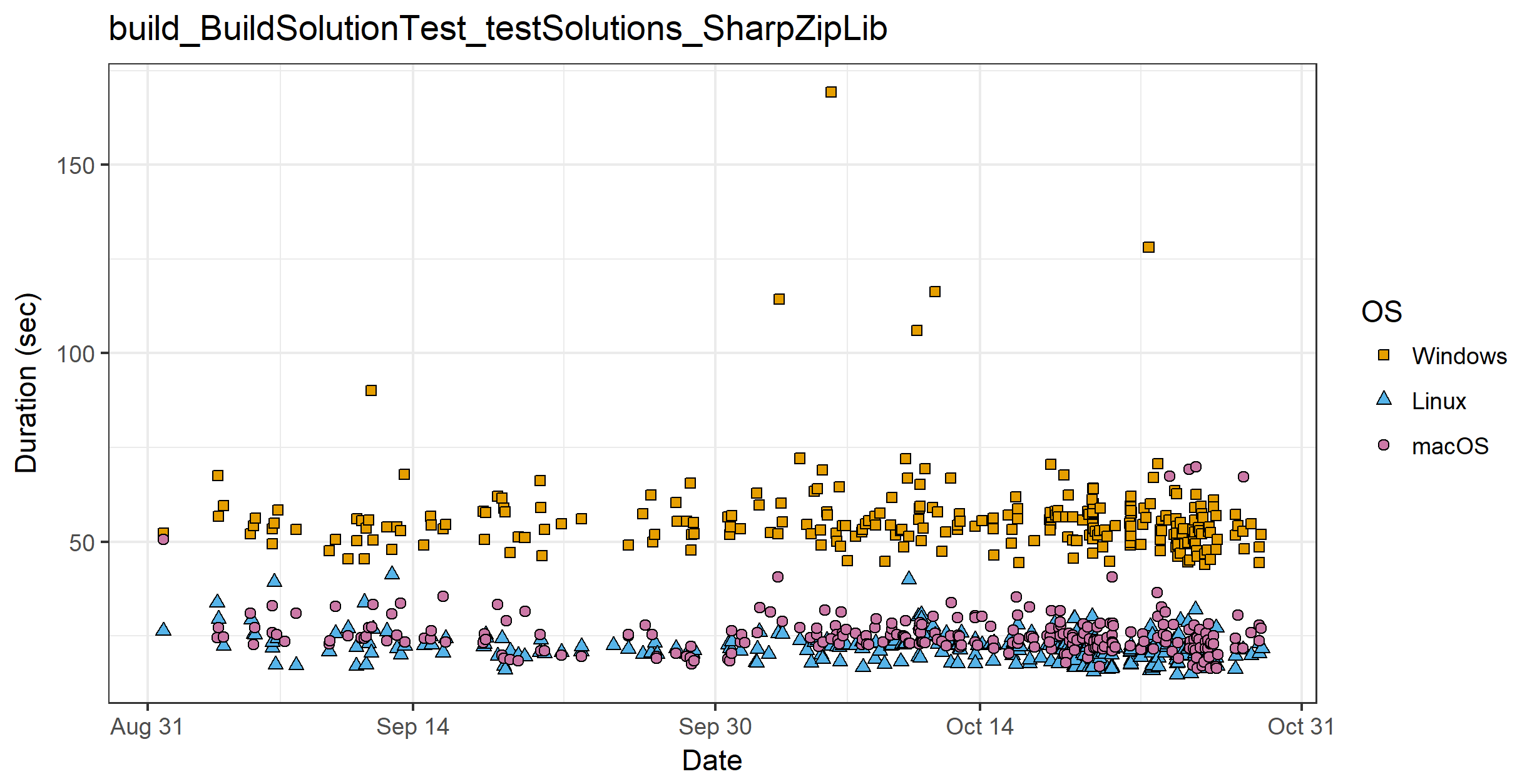

### Clasterization

.center[![:scale 90%](img/analysis-anomalies-clustering1.png)]

---
class: normal

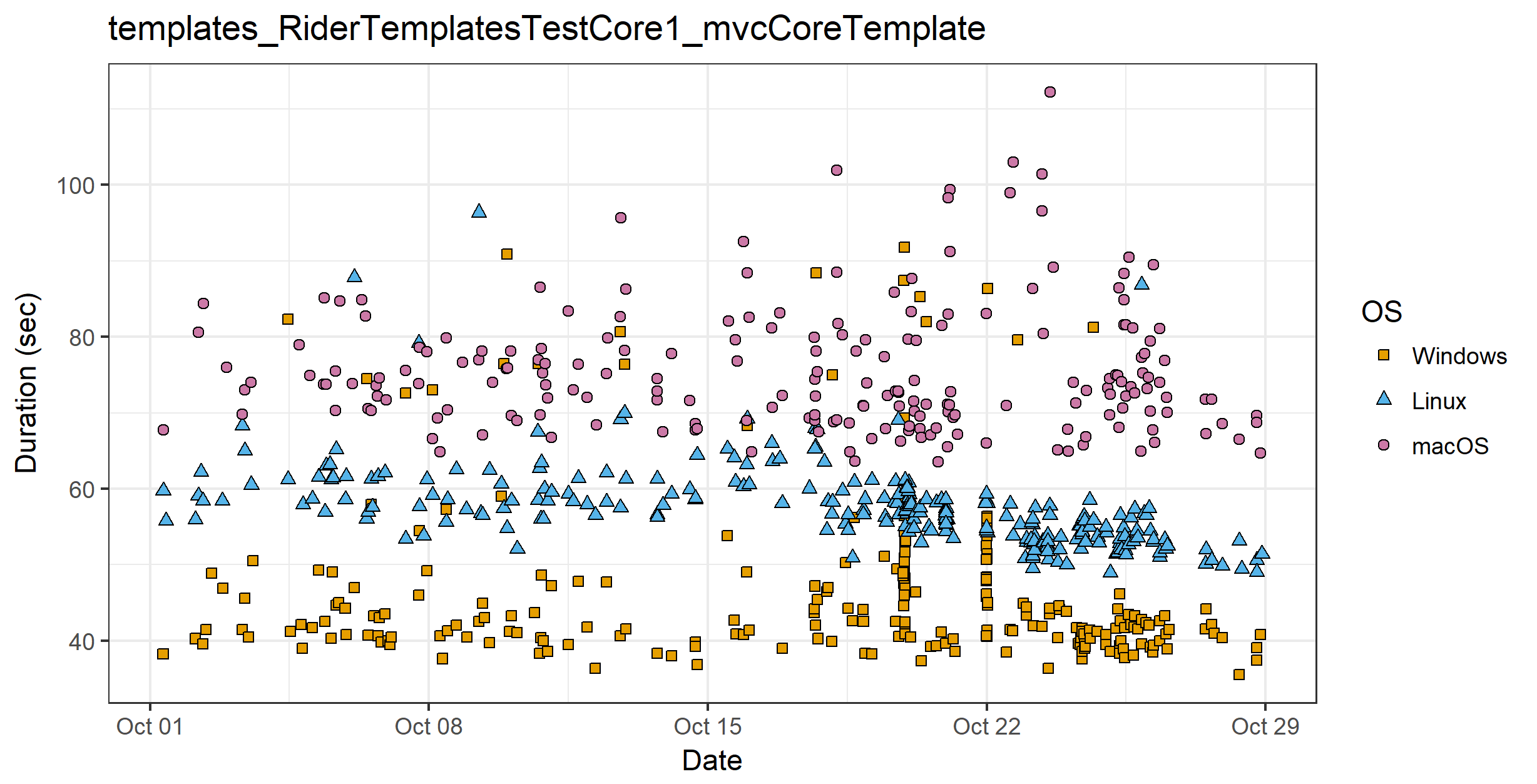

### Clasterization

.center[![:scale 90%](img/analysis-anomalies-clustering2.png)]

---
class: normal

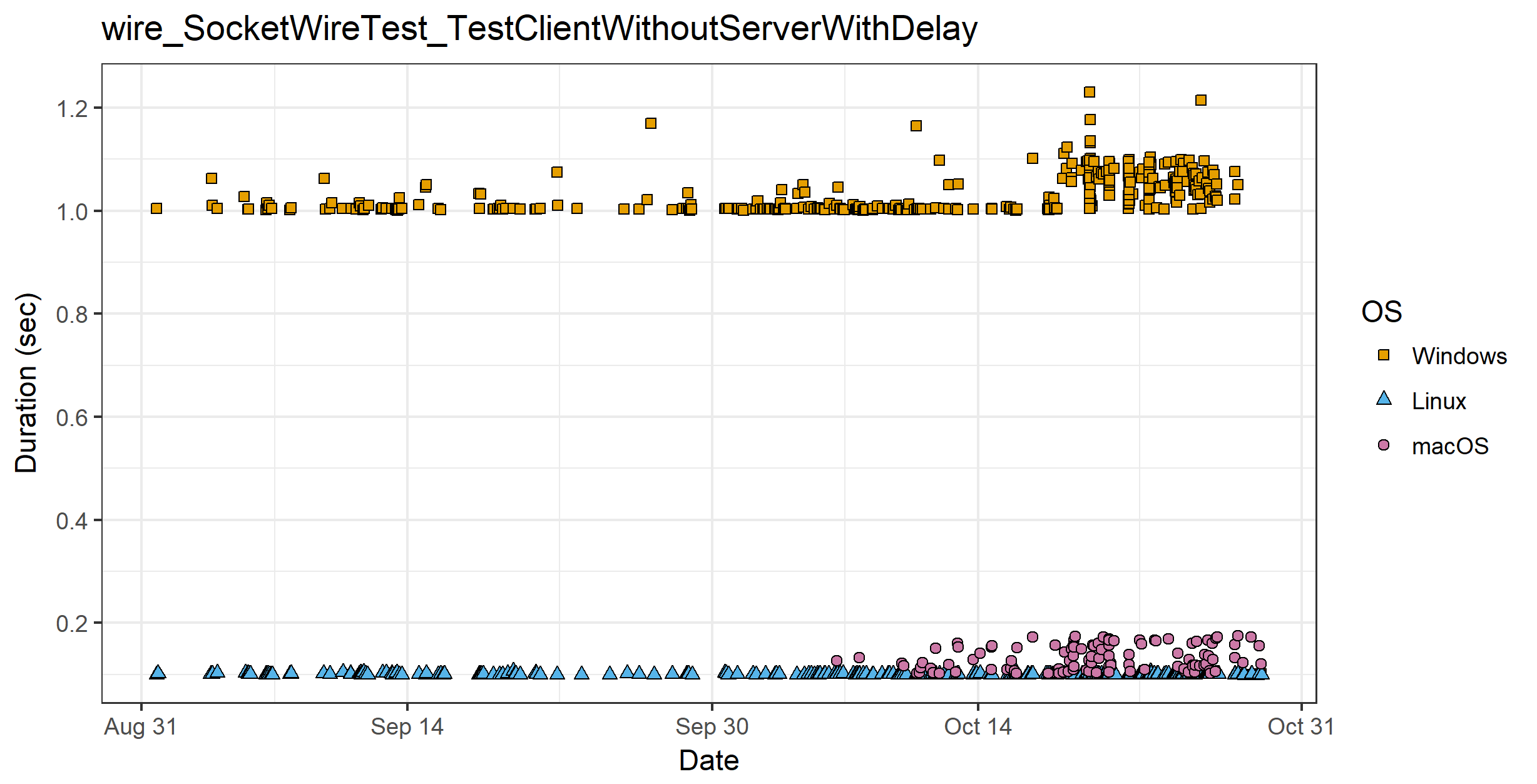

### Clasterization

.center[![:scale 90%](img/analysis-anomalies-clustering3.png)]

---
class: normal

### False anomalies

.center[![:scale 37%](img/friends.jpg)]

* Changes in tests

* Changes in the test order

* Changes in CI agent software/hardware

* Any other changes

---
template: template-section

## Part 5
## Performance Alarms & Asserts

---
layout: true
template: template-page

<div>.footer-note[(5) Performance Alarms & Asserts]</div>

---
class: normal

### Alarms vs. Asserts

|                  | Alarms              | Asserts        |
|:-----------------|:--------------------|:---------------|
| Action           | Send a notification | Fail a test    |
| False-positive   | Acceptable          | Not acceptable |
| Detection moment | After changes       | Before changes |
| Amount of data   | Doesn't matter      | A lot          |

---
class: normal

### Performance data

* Sources
  * Unit/Integration/Functional/End-to-end tests
  * Microbenchmarks
  * Stress testing
  * GUI tests
  * Fuzz testing
  * Monitoring
  * Telemetry
--

* Metrics
  * Wall-clock time of the whole test
  * Wall-clock time of the test stages
  * CPU/Memory/Disk/Network usage
  * Performance counters (e.g., GC.CollectionCount)
  * Hardware counters (e.g., CacheMisses, BranchMispredictions)

---
class: normal

### Environment

--
.up[]

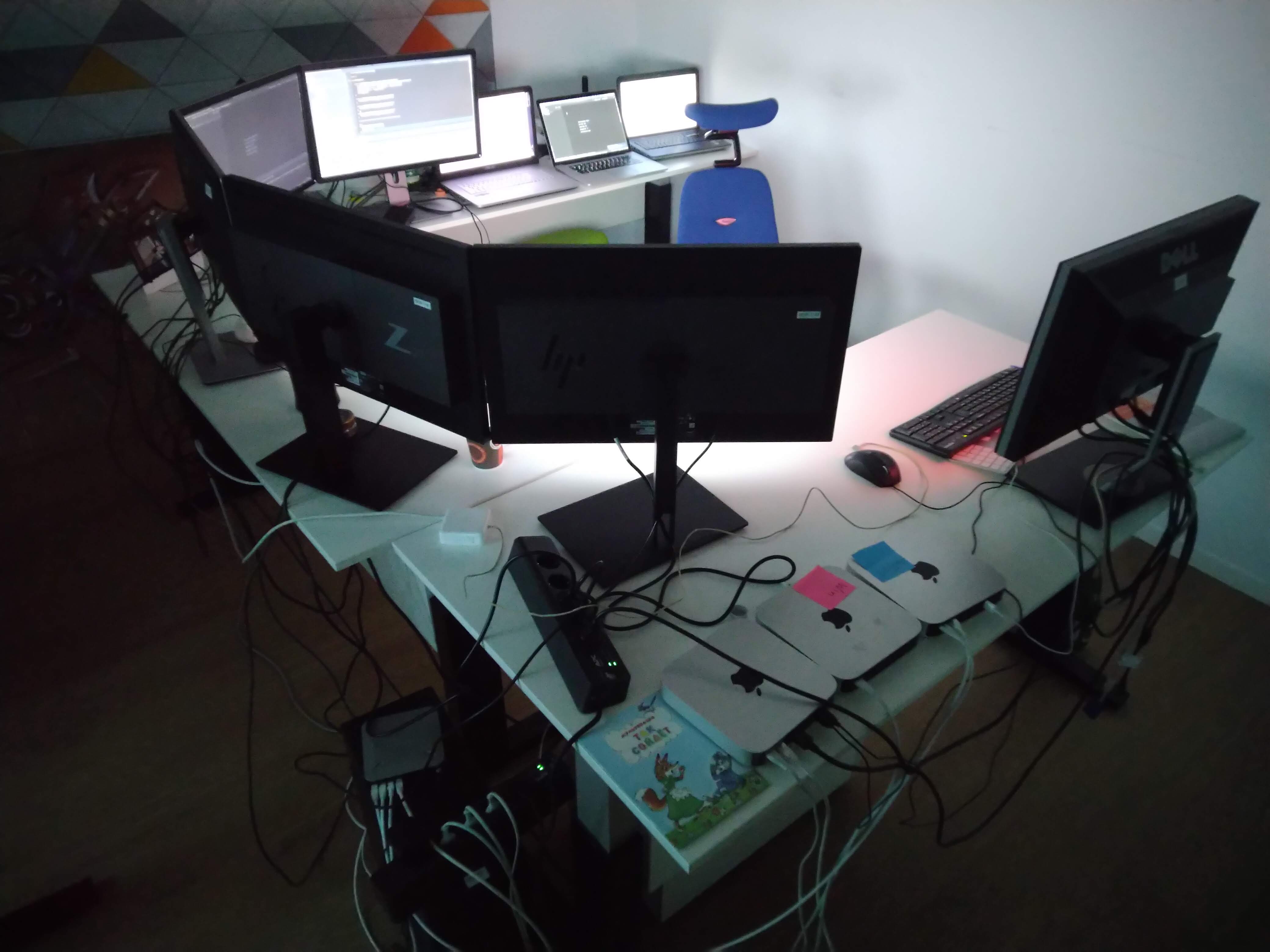

.center[My workplace:]
.center[![:scale 70%](img/desktop.jpg)]

---
class: normal

### Physical environment

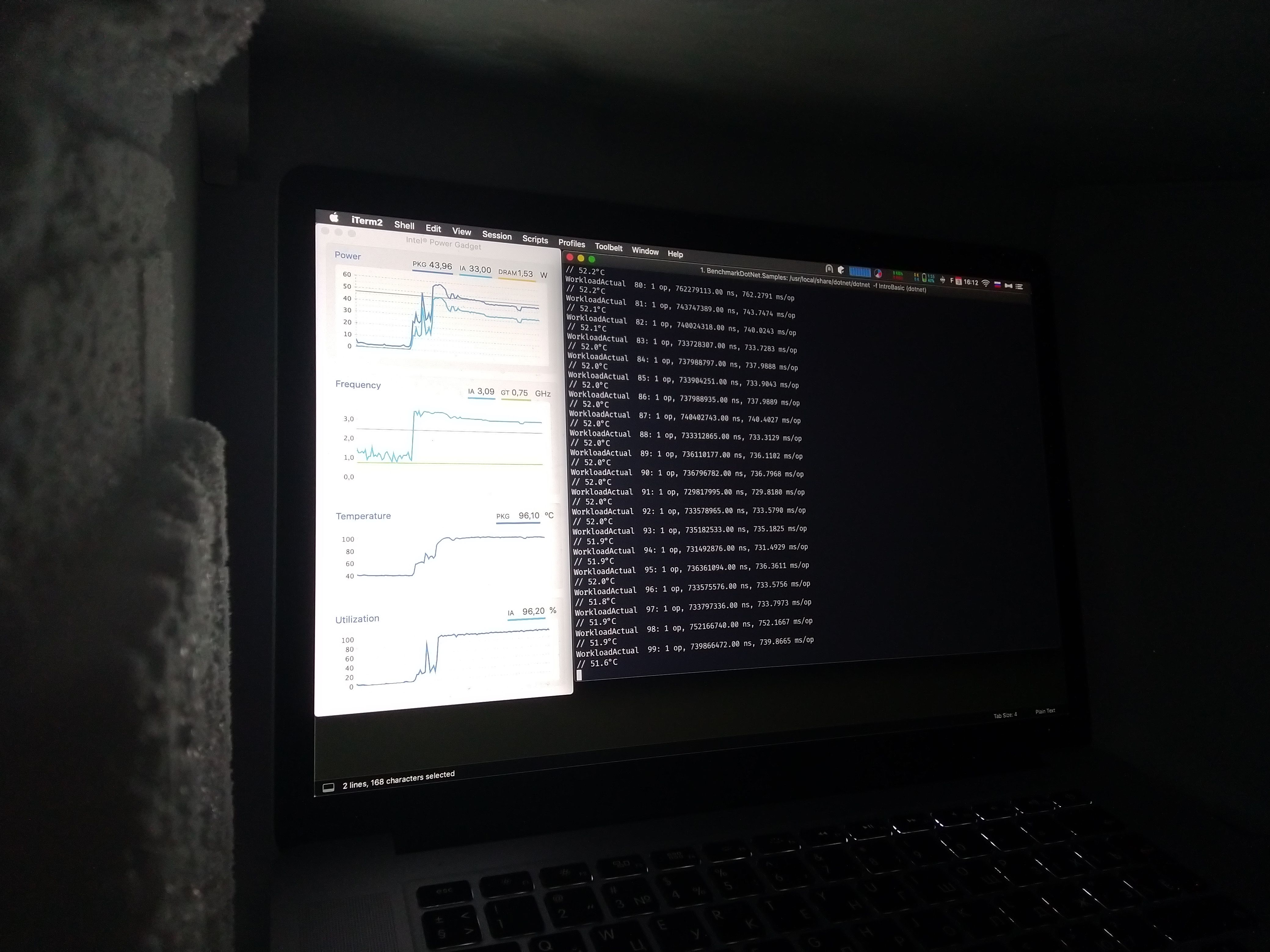

.pull-left-33[![:scale 100%](img/env1.jpg)<br />In a freezer]

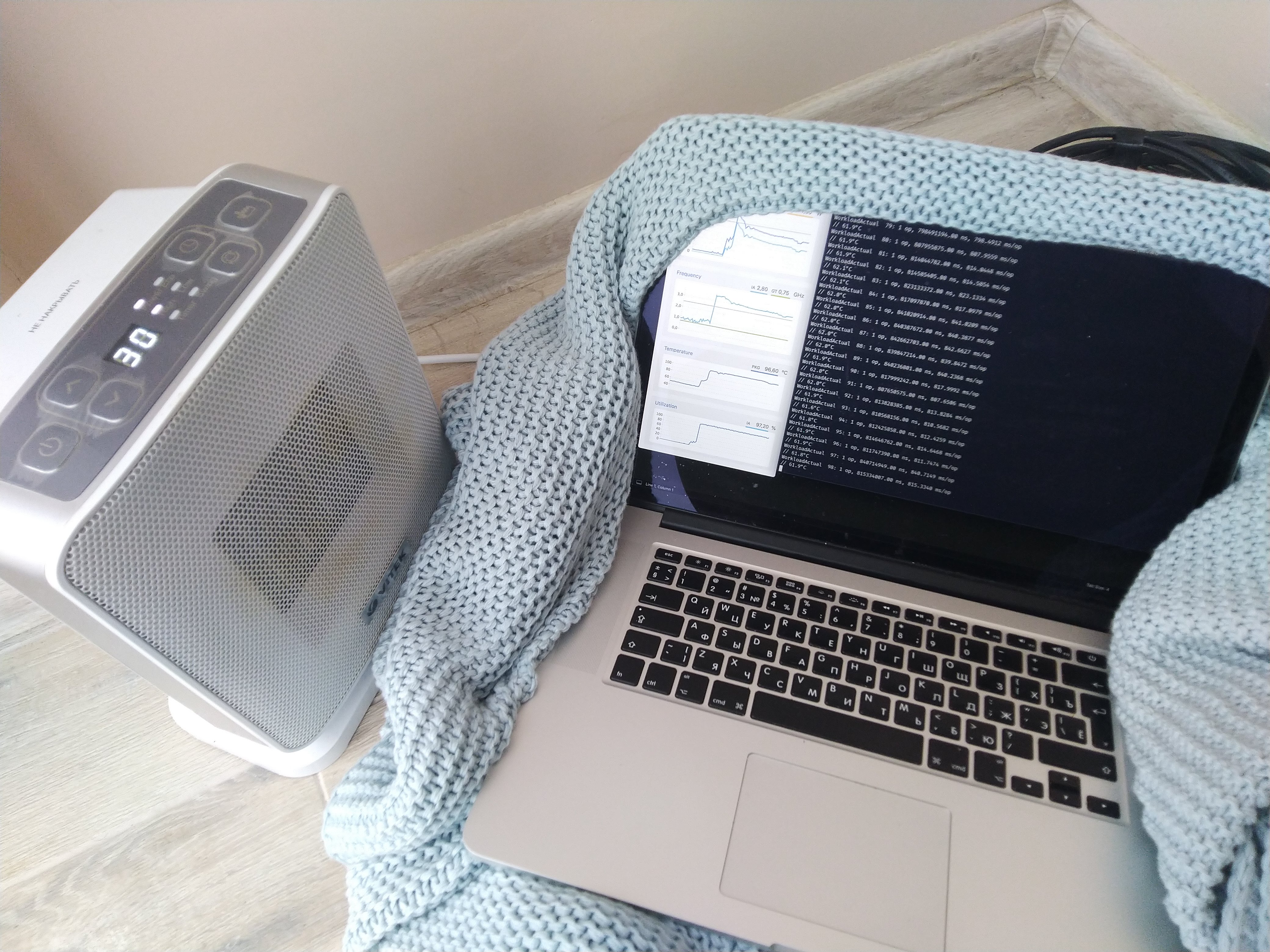

.pull-left-33[![:scale 100%](img/env2.jpg)<br />In a blanket]
.pull-left-33[![:scale 100%](img/env3.jpg)<br />In an owen]

---
class: normal

### Dashboard-oriented approach for alarms

.up[]
.center[**Worst degradations**]
.up1[]

| Test    | Ratio      |
|--------:|-----------:|
| Test472 | 35.0..48.0 |
| Test982 | 10.0..12.0 |
| Test872 |  1.1.. 1.2 |
| Test375 |  1.0.. 1.1 |
| Test184 |  0.9.. 1.0 |
| Test592 |  0.9.. 1.0 |
| Test824 |  0.9.. 1.0 |
| Test294 |  0.9.. 1.0 |
| Test235 |  0.9.. 1.0 |
| Test948 |  0.9.. 1.0 |

---
class: normal

### Absolute Threshold [Asserts]

.up[]

```cs
[Test(Timeout = 5000)]
public void Foo()
{
  // ...
}
```

---
class: normal

### Relative Threshold [Asserts]

.up[]

```cs
[Benchmark]
public void Foo()
{
  // ...
}

[Benchmark]
public void Baseline()
{
  // ...
}

[Test]
public void VerifyFooPerf()
{
  Assert.True(Mean(Foo) / Mean(Baseline) > 5000);
}
```

---
class: normal

### Adaptive Threshold [Asserts]

.up[]

```cs
[Test]
public void VerifyPerf(history: List<double>, current: List<double>)
{
  var result = Compare(history, current)
  Assert.True(result.Ratio.Upper < 2);
}
```

---
class: normal

### Adaptive Threshold + Optional Stopping [Asserts]

.up[]

```cs
[Test]
public void VerifyPerf(history: List<double>)
{
  var current = new List<double>();
  while (true)
  {
    var duration = Measure();
    current.Add(duration);
    var result = Compare(history, current);

if (result.Ratio.Upper > 2)
    {
      if (result.Notes == "We are sure")
        Fail();   // A degradation is detected!
      if (result.Notes == "We are not sure")
        continue; // We need more data
    } else
      return;     // No major degradations are detected
  }
}
```

---
template: template-section

## Part 6
## Conclusion

---
layout: true
template: template-page

<div>.footer-note[(6) Conclusion]</div>

---
class: normal

### Final tips

* Make performance reports user-friendly

* Learn mathematical statistics

* Check all kinds of performance anomalies

* Use all the data that you have

* Automate everything that can be automated

---
class: normal

### Performance Culture

.center[![:scale 50%](img/responsibility.jpg)]

---
class: normal

### My first performance monitoring attempt

.up[]
.center[![:scale 100%](img/how-it-works.gif)]

---
class: normal

### Reference literature

.up[]
.center[![:scale 38%](img/book.png)]
.bottom-hint-huge[https://aakinshin.net/prodotnetbenchmarking/]

---
class: normal

### Thank you for your attention!

.center[![:scale 30%](img/bdn-logo.svg)]

.center[
Andrey Akinshin

https://aakinshin.net

https://github.com/AndreyAkinshin

https://twitter.com/andrey_akinshin

andrey.akinshin@gmail.com
]
